Windows OS Onboarding: Part 3 - Configuration Profiles

edMesh Header.png

How to Create Configuration Profiles



Sign in to the Microsoft Intune Admin Centre:

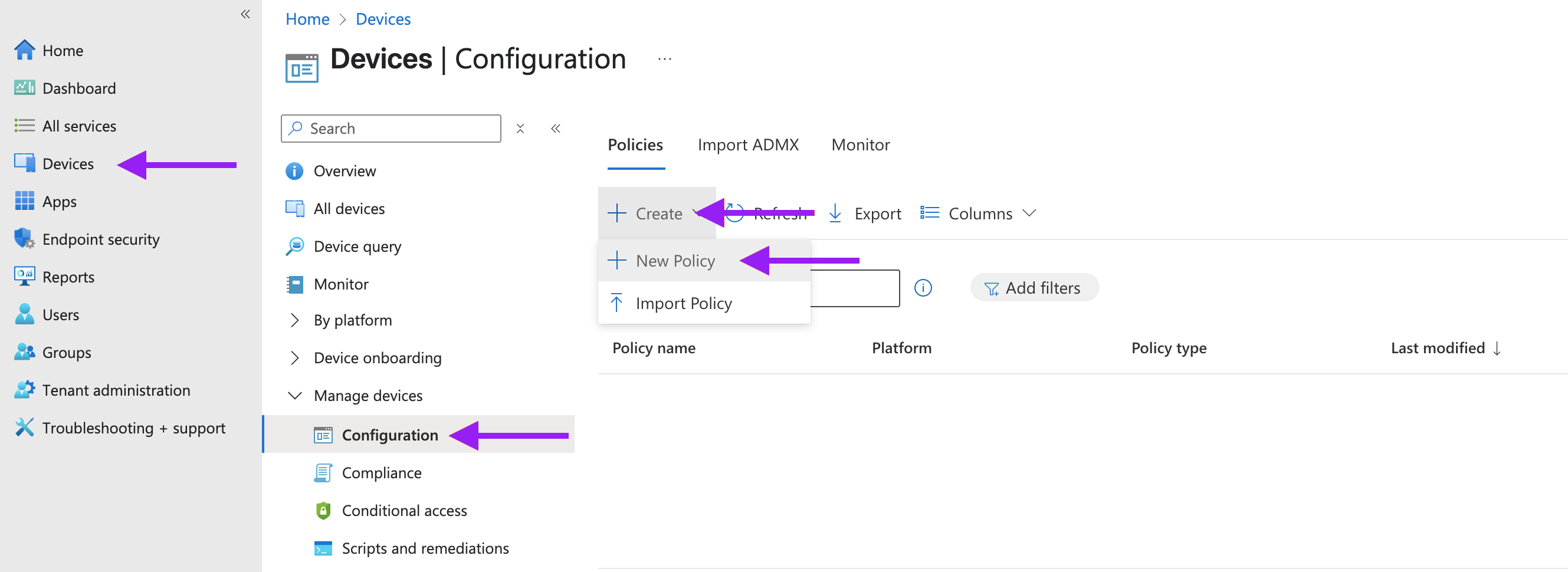

Configuration Profile:

  • Devices
  • Manage Devices drop-down
  • Configuration
  • Create
  • New Policy

WP3 img 1.png

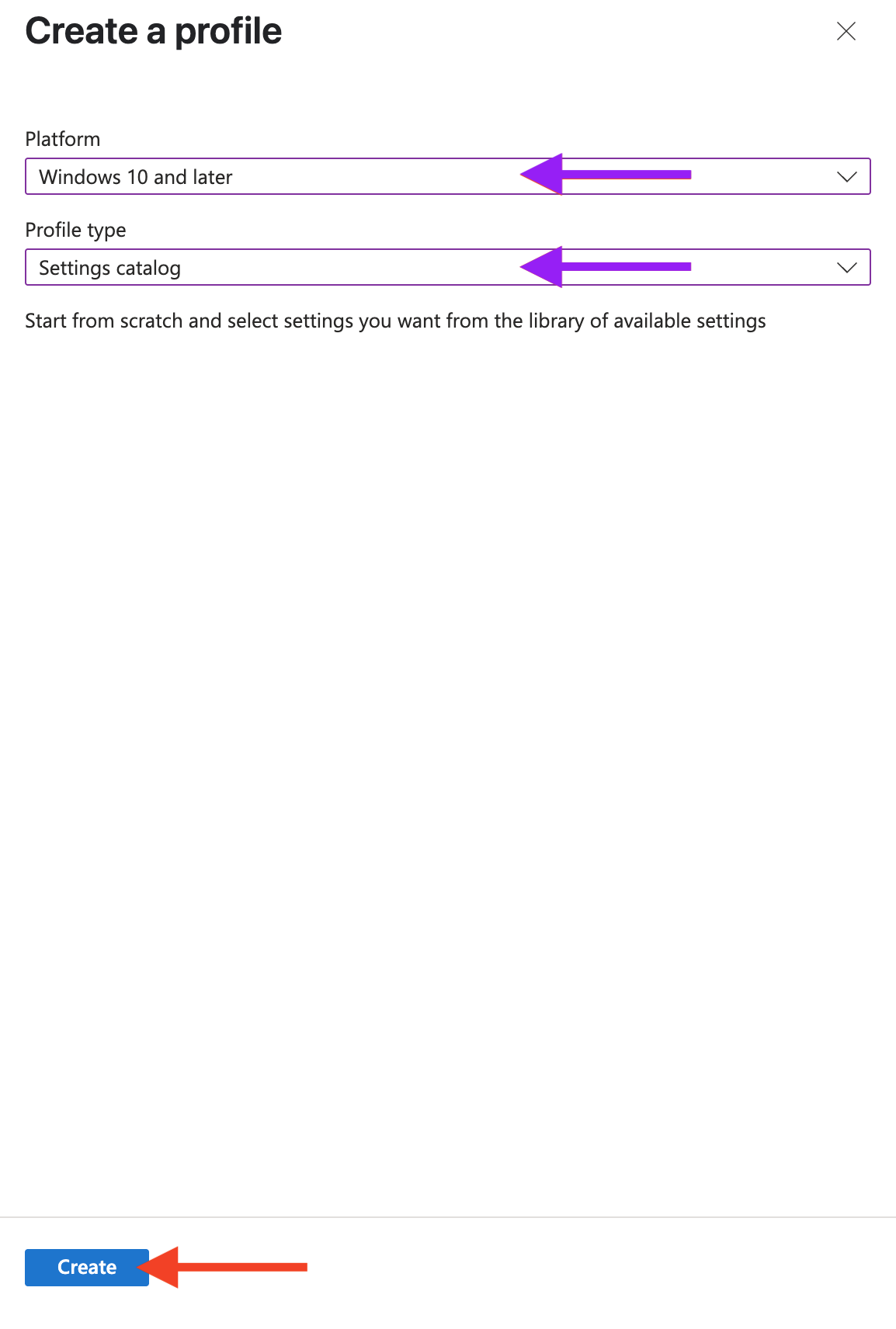

On the Create Profile window, ensure the below are selected:

  • Platform: Windows 10 and later
  • Profile type: Settings catalog
  • Create



WP3 img 2.png

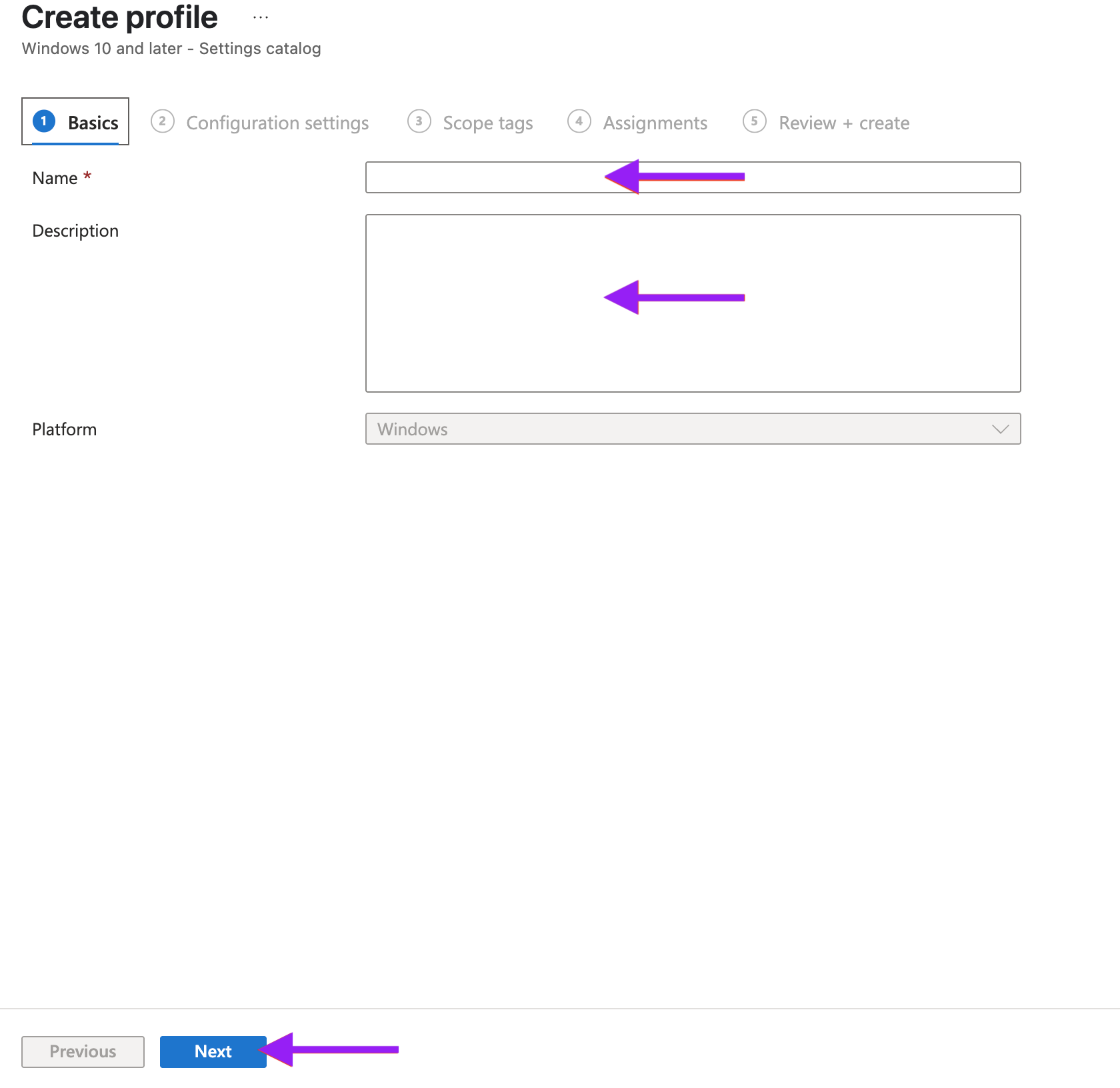

Basics

You will now be required to enter the profile details:

  • Name: Enter a descriptive name for the policy (e.g., edMesh Microsoft Edge Browser Settings).
  • Description: Enter a description for the policy (optional but recommended).
  • Click Next

WP3 img 3.png

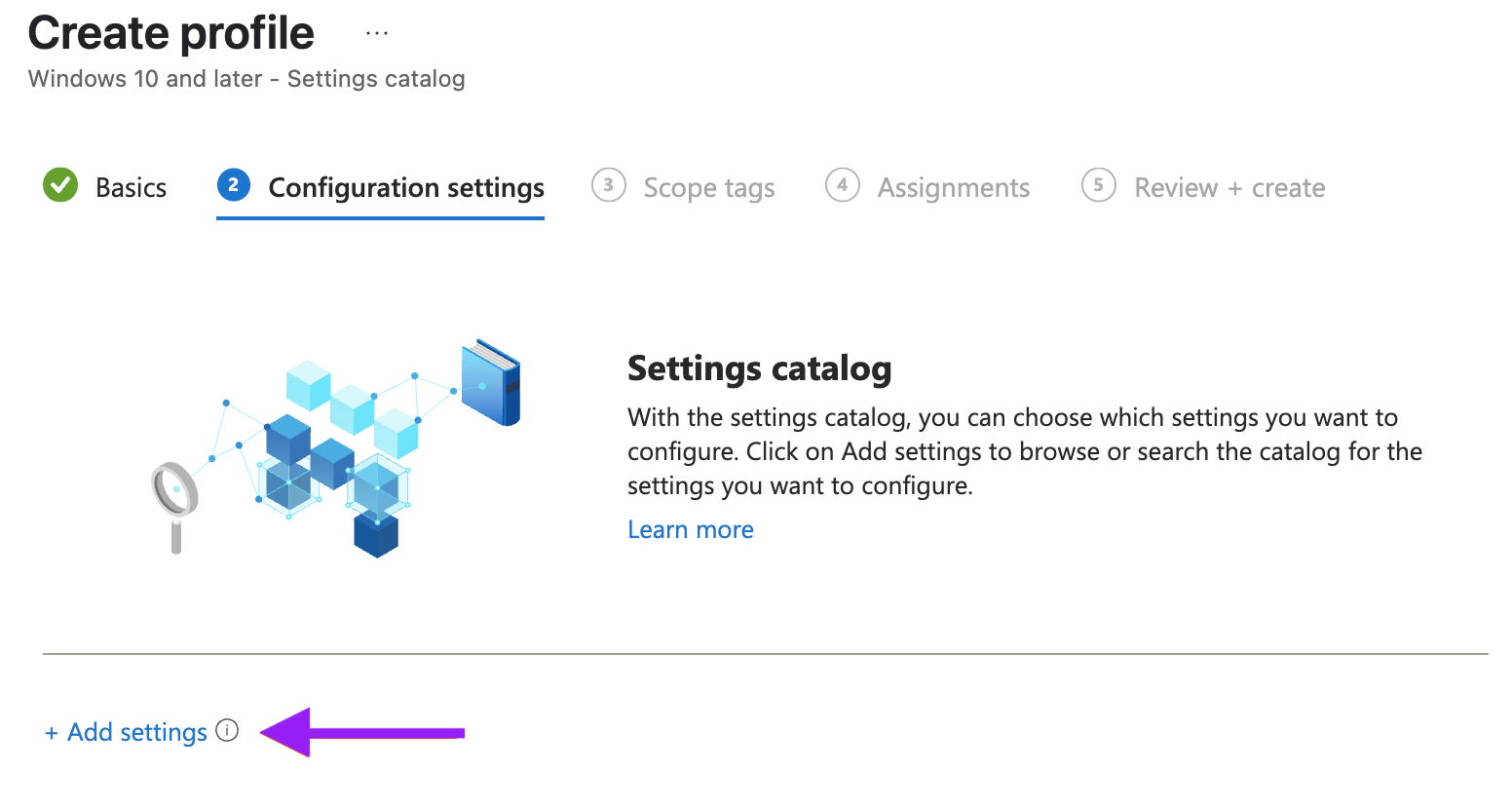

Configuration settings

Here you would need to add the settings for the profile.

  • Select Add Settings

WP3 img 4.png

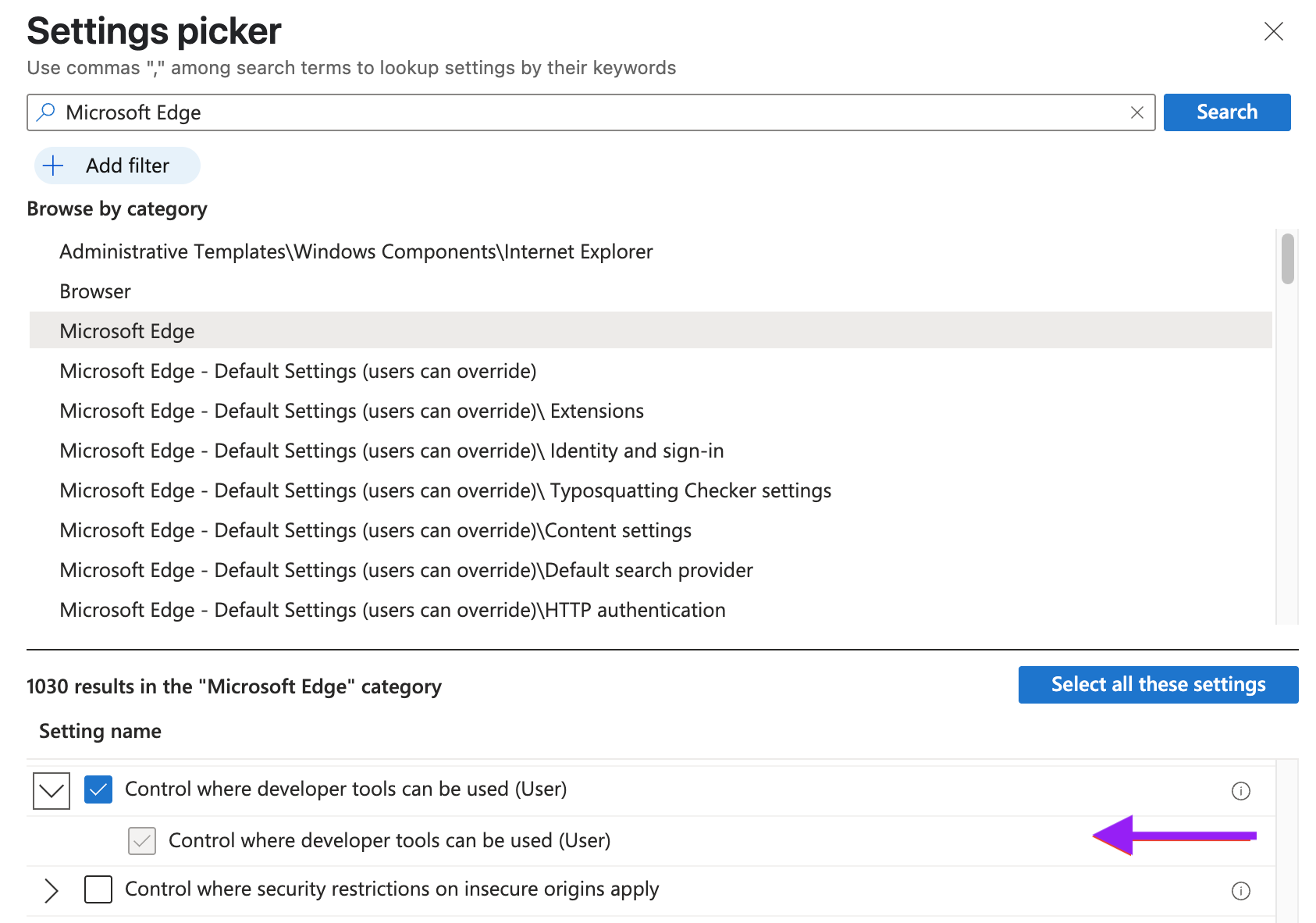

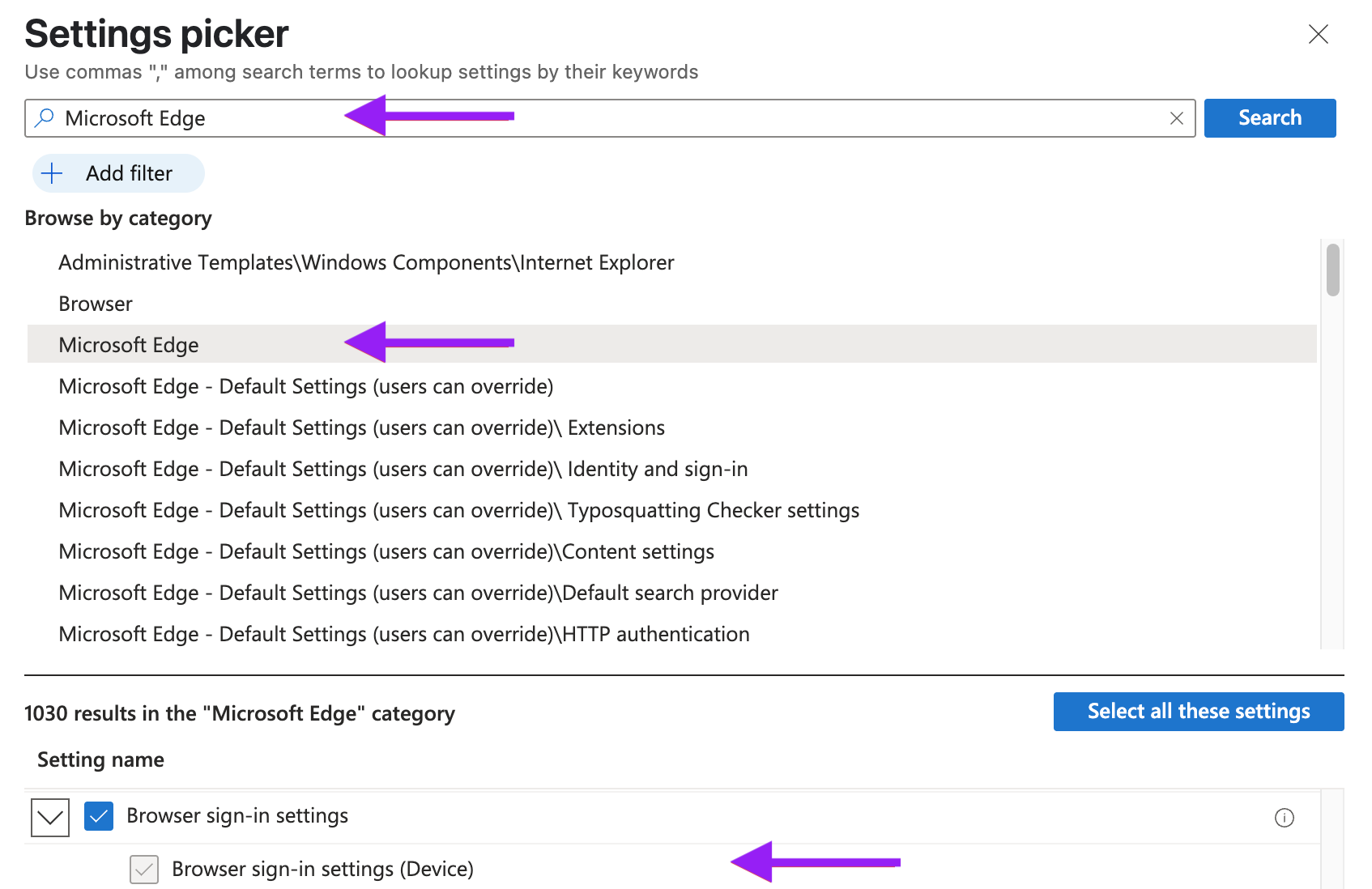

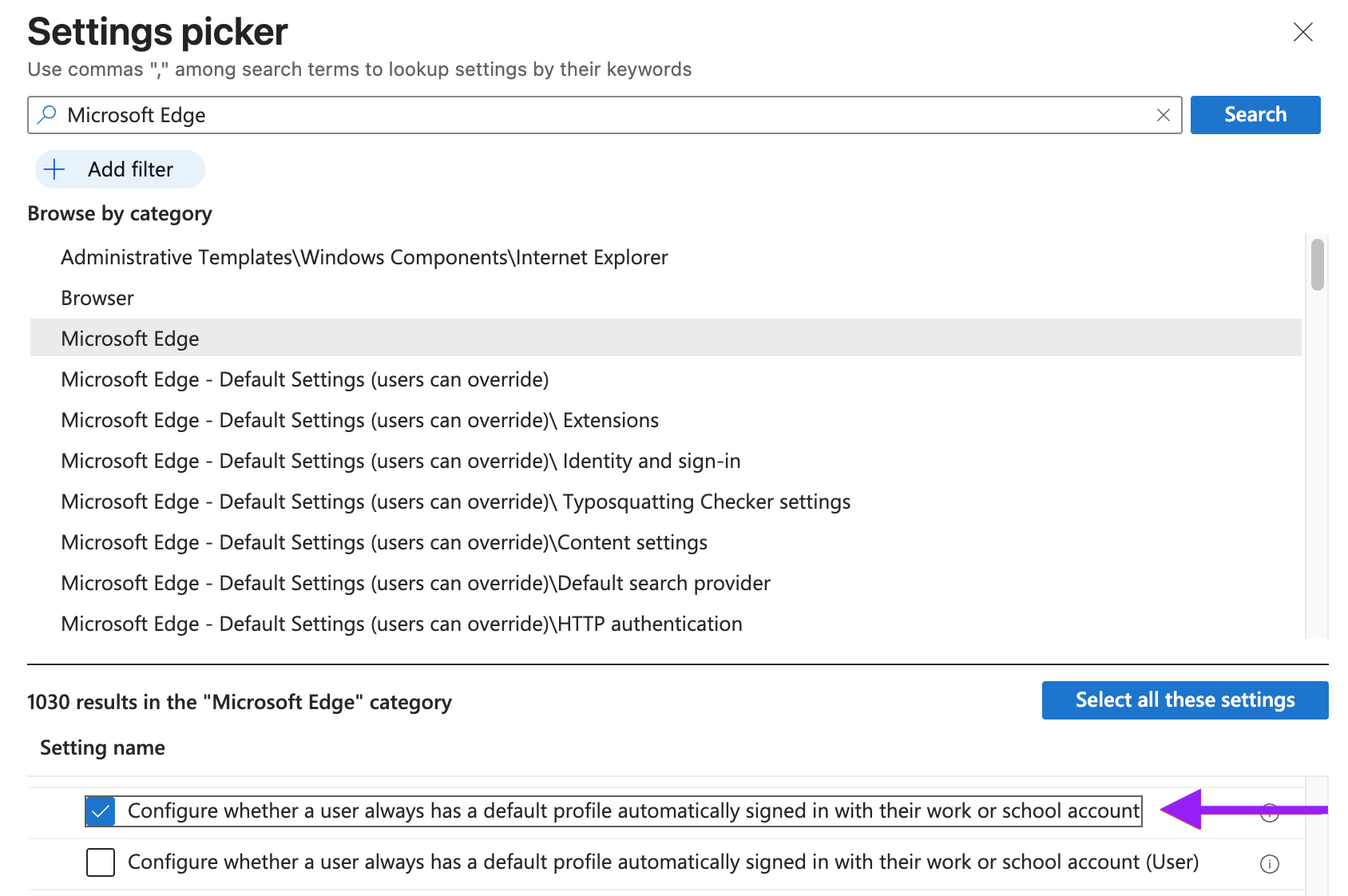

In the Settings picker window, search and select the following settings:

  • Category:
    • Search for Microsoft Edge
  • Settings:
    • Search for and select: Browser sign-in settings (Device)
    • Search for and select: Configure whether a user always has a default profile automatically signed in with their work or school account
    • Search for and select: Control where developer tools can be used (User)
  • Once all three are selected, click the X button in the top right corner



WP3 img 5.png



WP3 img 6.png



WP3 img 7.png

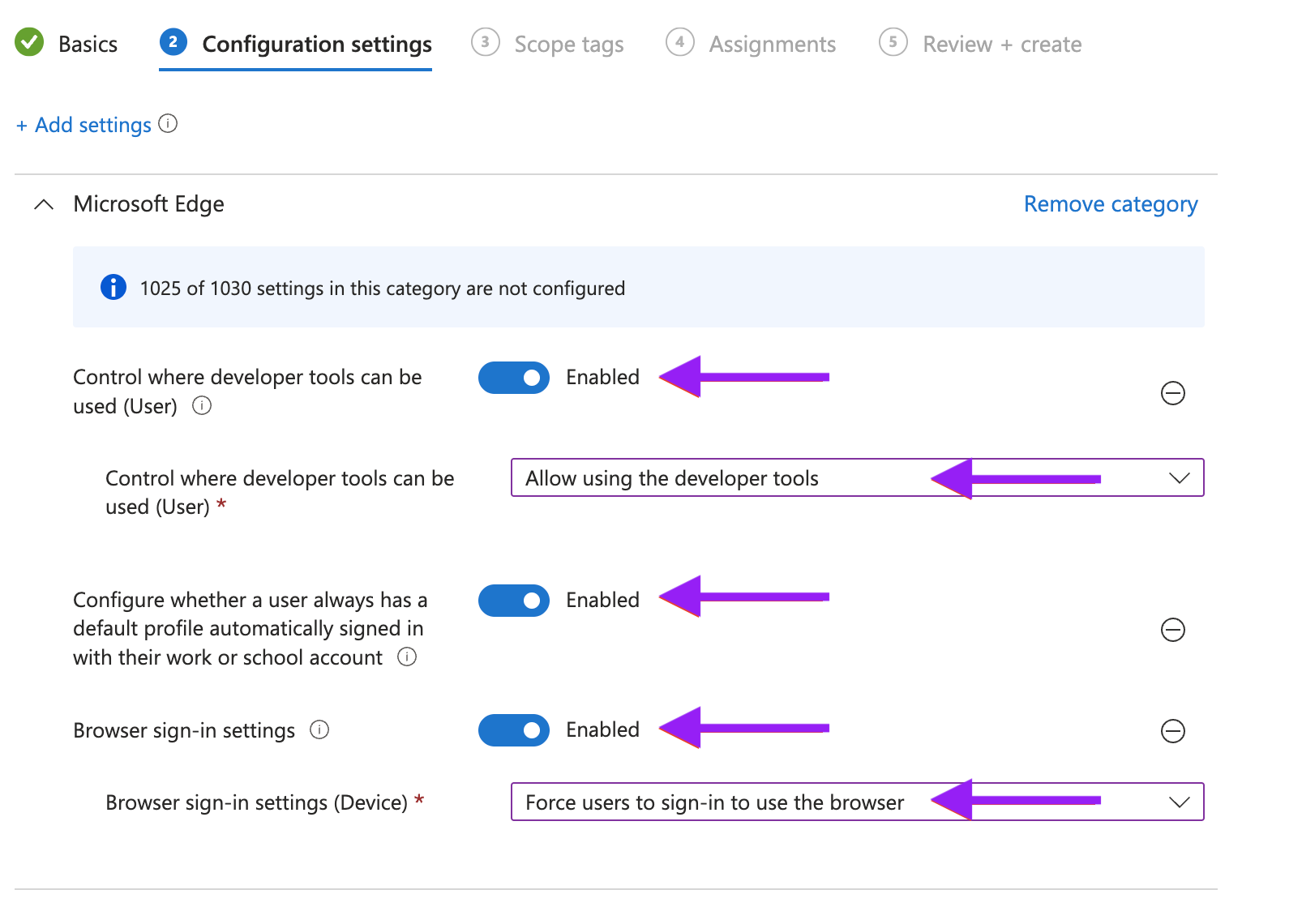

  • Once the setting are added, ensure they are all set to Enaled
  • Control where developer tools can be used (User)
    • Set to Allow using the the developer tools
  • Browser sign-in settings (Device)
    • Set to  Force users to sign-in to the browser

WP3 img 7.2.png

#Note: Developer tools should only be enabled for initial testing and disabled for student devices.



Select Next to move to the Scope Tags tab and select Next again, as you will not be required to make any changes.



 Assignments

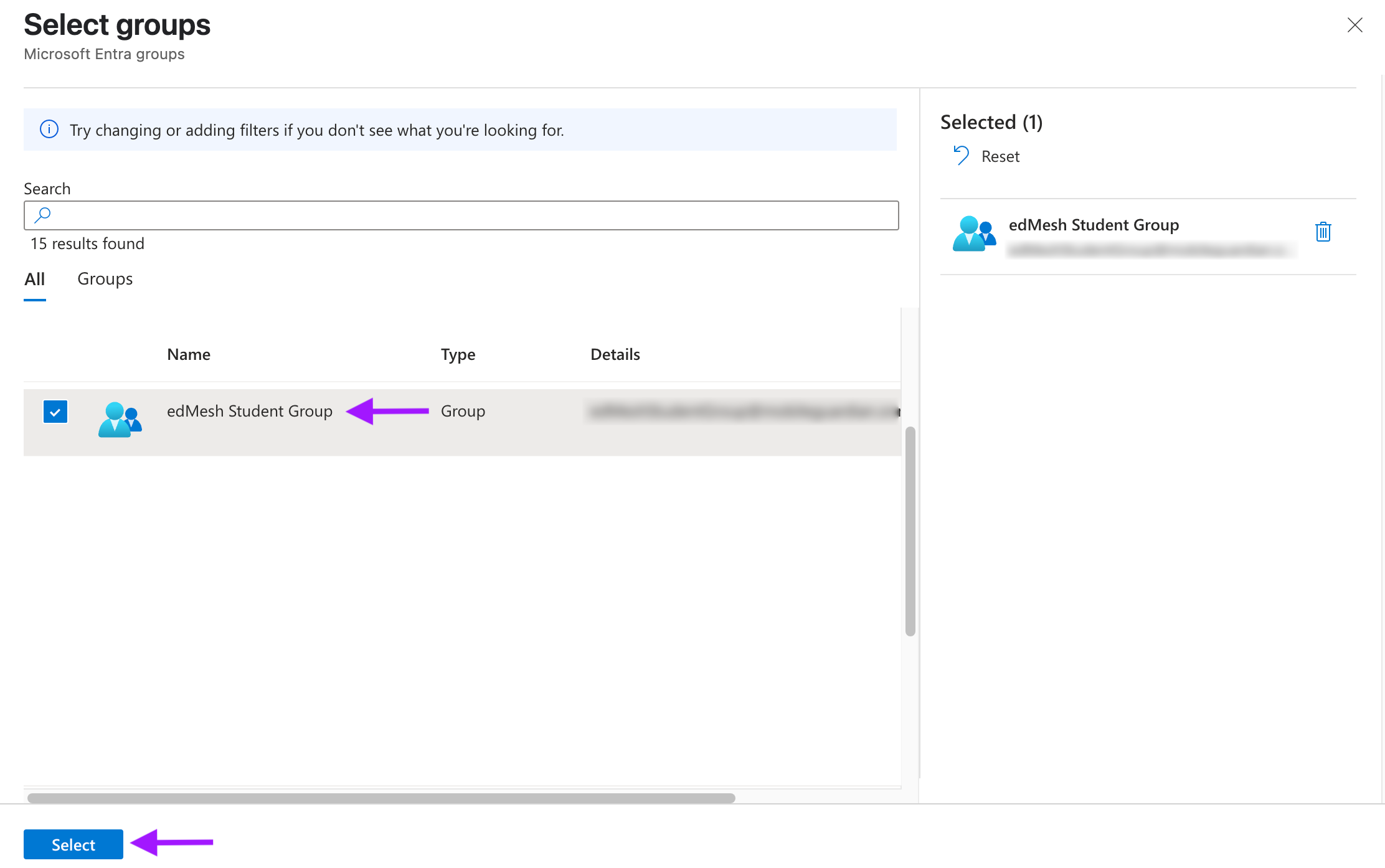

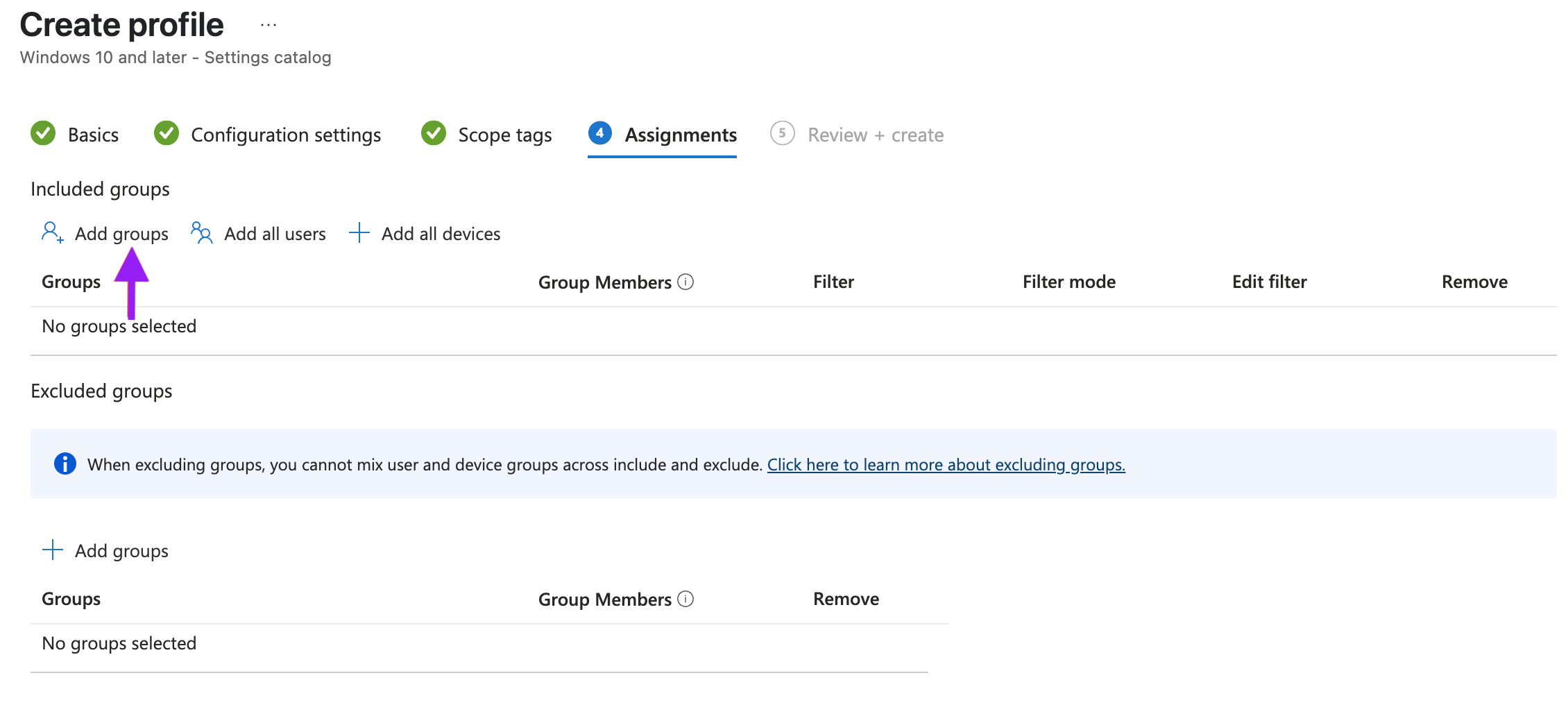

Under the Included groups section

  • Select Add groups
  • Select the group you want to apply the settings to (e.g., Students)
  • Select Next

WP3 img 8.png

WP3 img 9.png

WP3 img 10.png

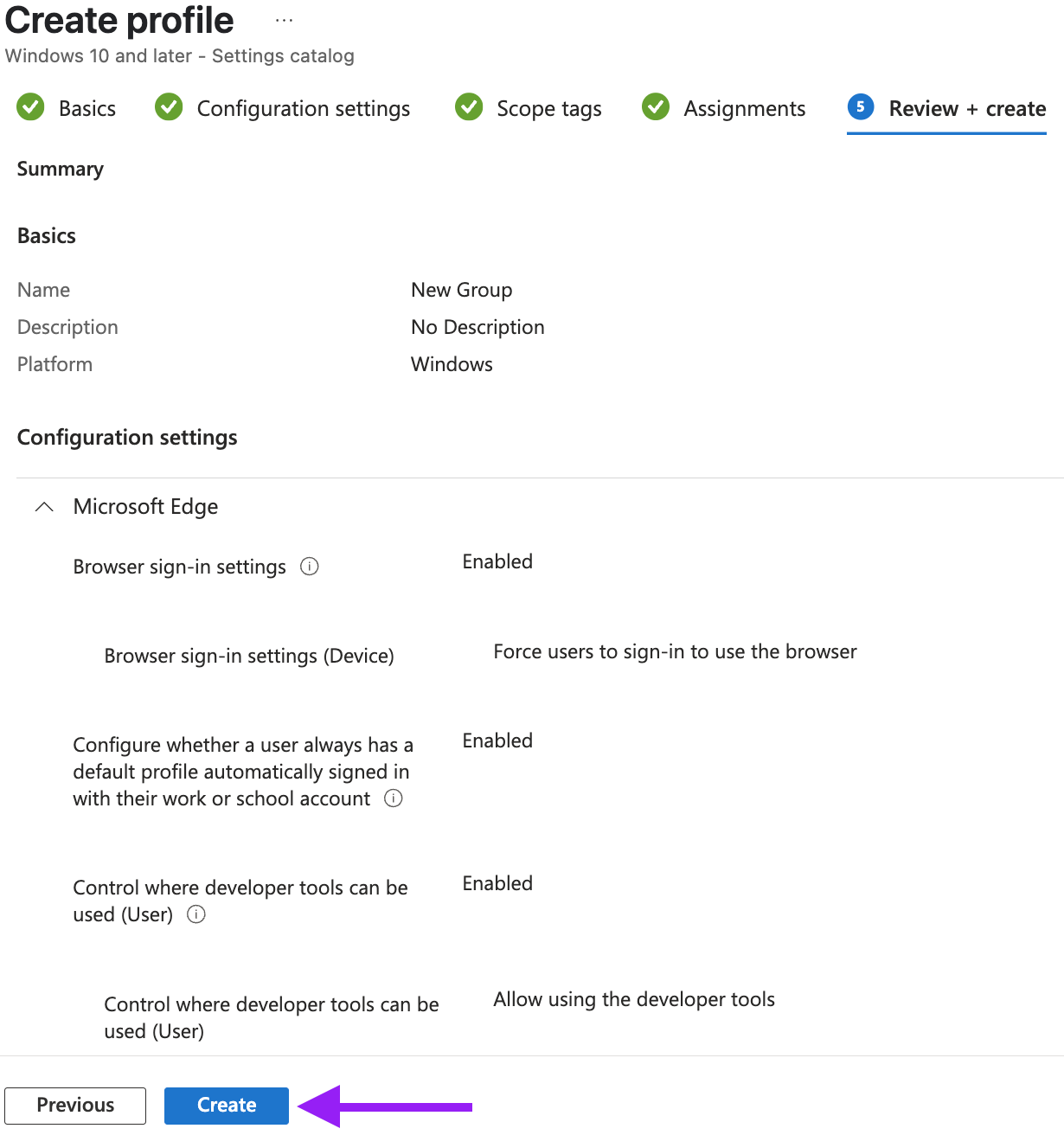

Review and Create:

  • Review your settings and click Create.

WP3 img 11.png

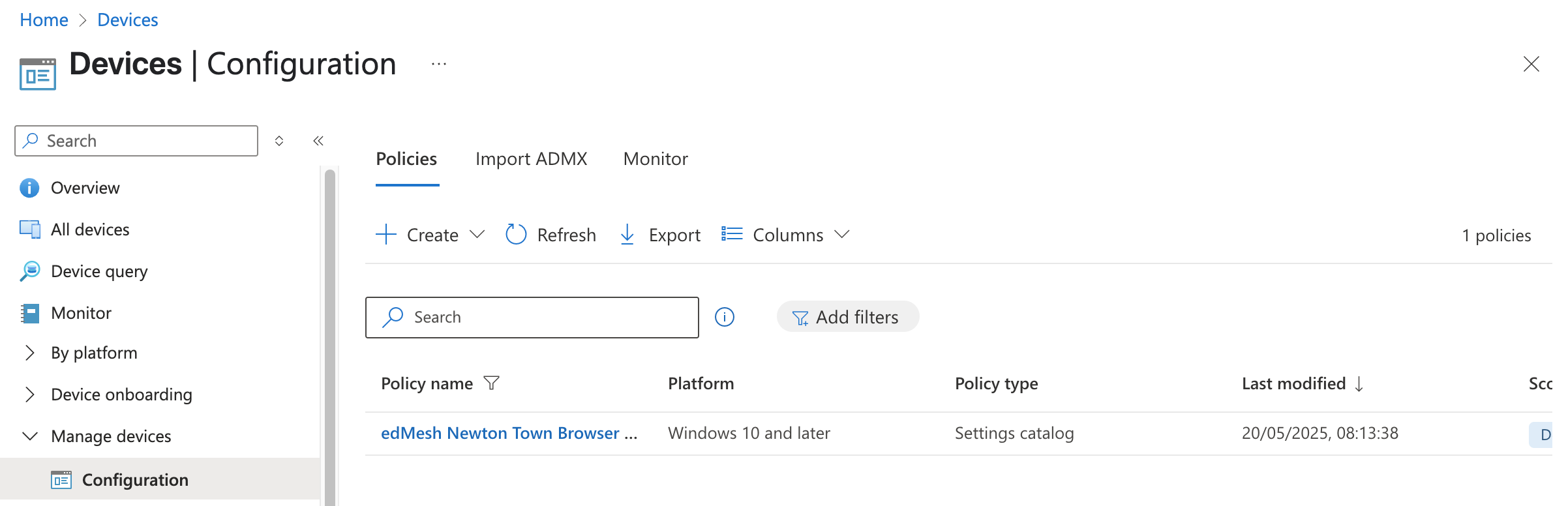

  • Refresh the page to see your newly created configuration profile.

WP3 img 12.png

Creating a Configuration Profile for Managed Edge Extensions

Configuration Profile:

Create a new Profile as in the previous steps.

  • Devices
  • Manage Devices drop-down
  • Configuration
  • Create
  • New Policy

On the Create Profile window, ensure the below are selected:

  • Platform: Windows 10 and later
  • Profile type: Settings catalog
  • Create

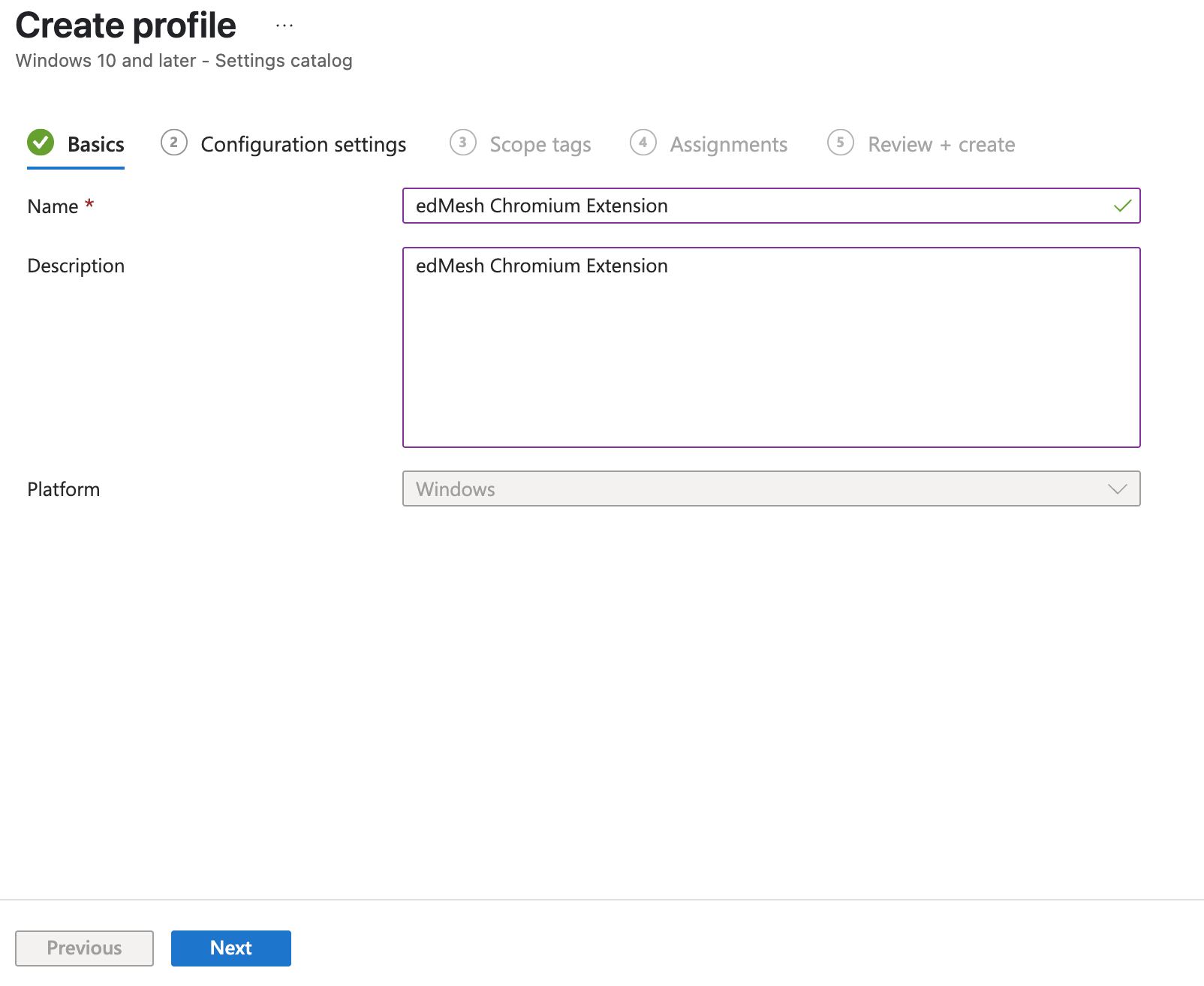

Basics

  • Name: Enter a descriptive name for the policy (e.g., edmesh Managed Edge Chromium Extensions).
  • Description: Enter a description for the policy (optional but recommended).
  • Click Next

WP3 img 13.png



Configuration Settings

  • Select: Add settings

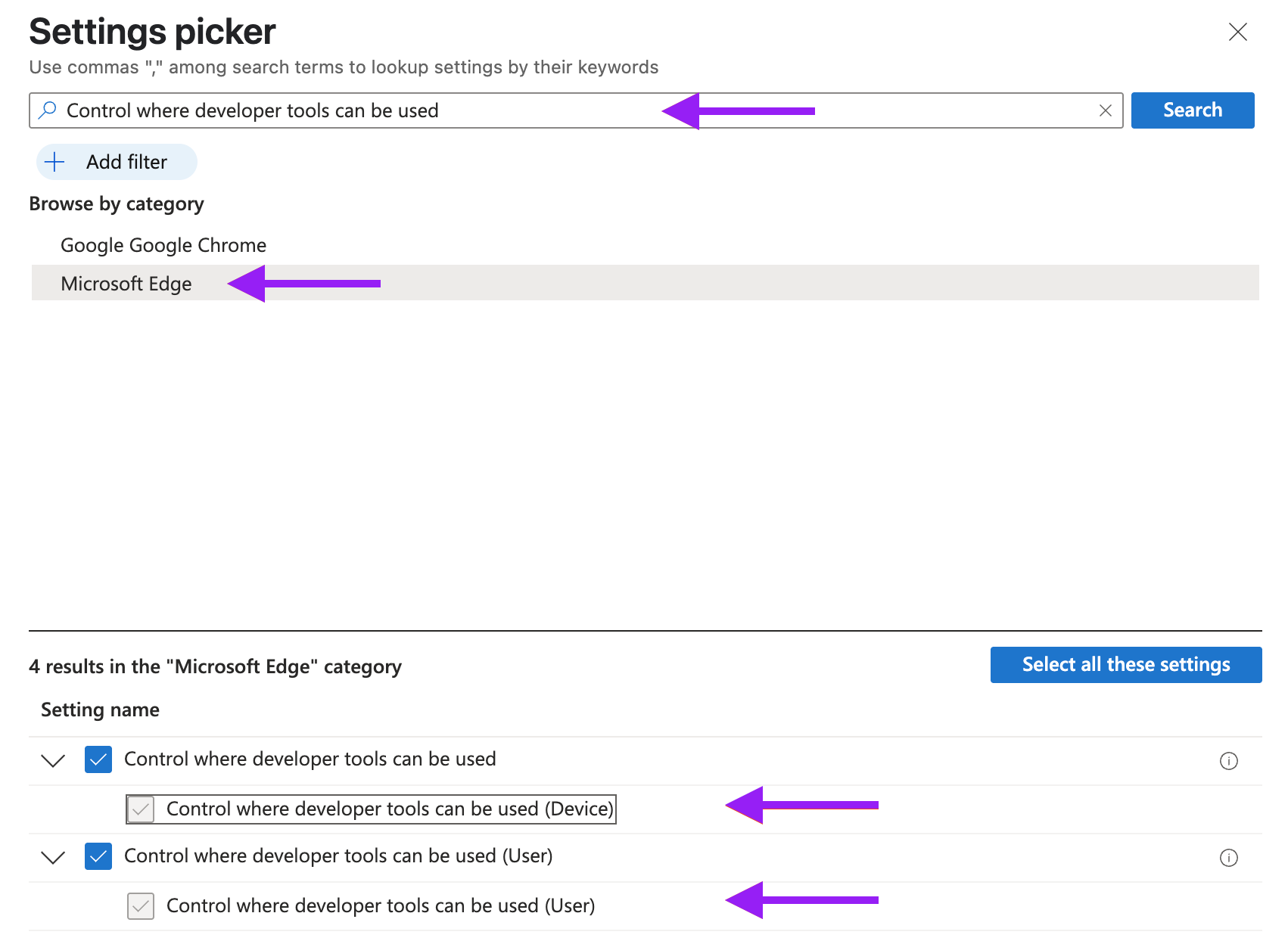

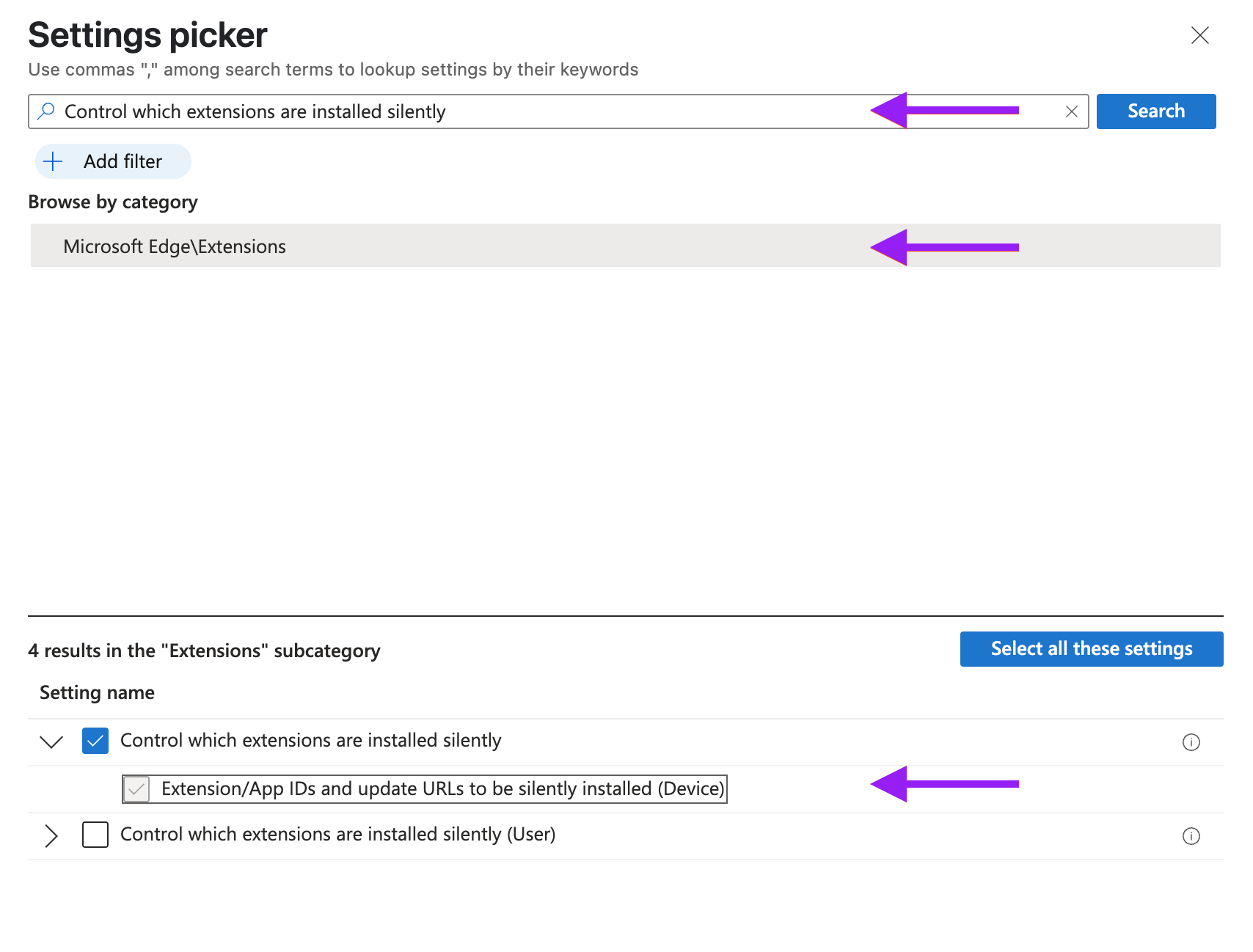

Search and select the following settings

  • Settings:
    • Control where developer tools can be used
    • Control which extensions are installed silently

WP3 img 14.png



WP3 img 15.png

  • Once all are selected, click the X button in the top right corner

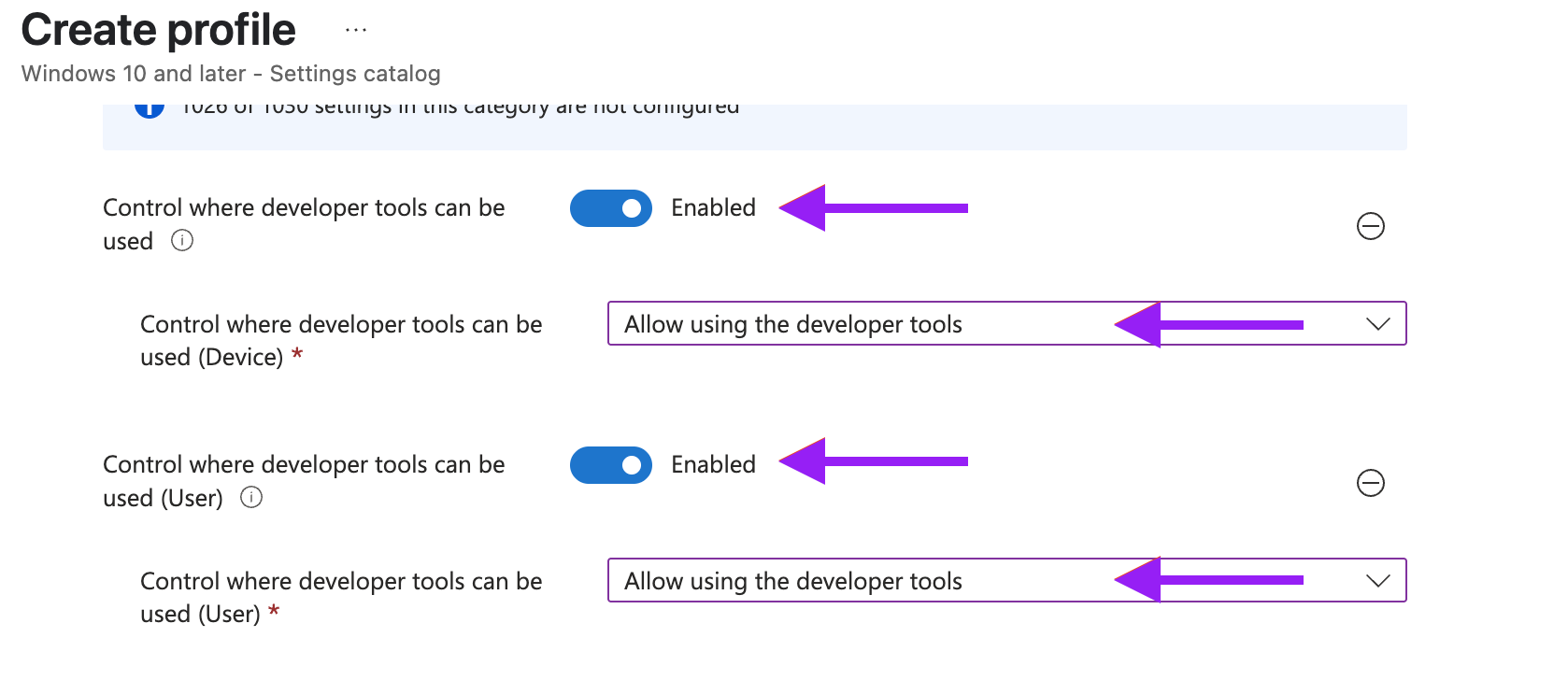

  • Once the settings are added, ensure they are all set to Enaled
  • Control where developer tools can be used (Device)
    • Set to Allow using the the developer tools
  • Control where developer tools can be used (User)
    • Set to Allow using the the developer tools

WP3 img 16.png

#Note: Developer tools should only be enabled for initial testing. It should be disabled everywhere for student devices



Configure Extensions

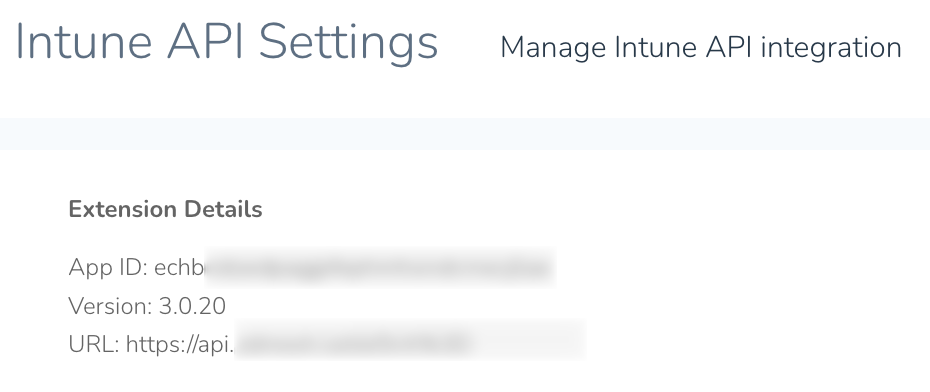

You will need App ID and URL found in your Intune Settings on the edMesh Dashboard.

WP3 img 17.png

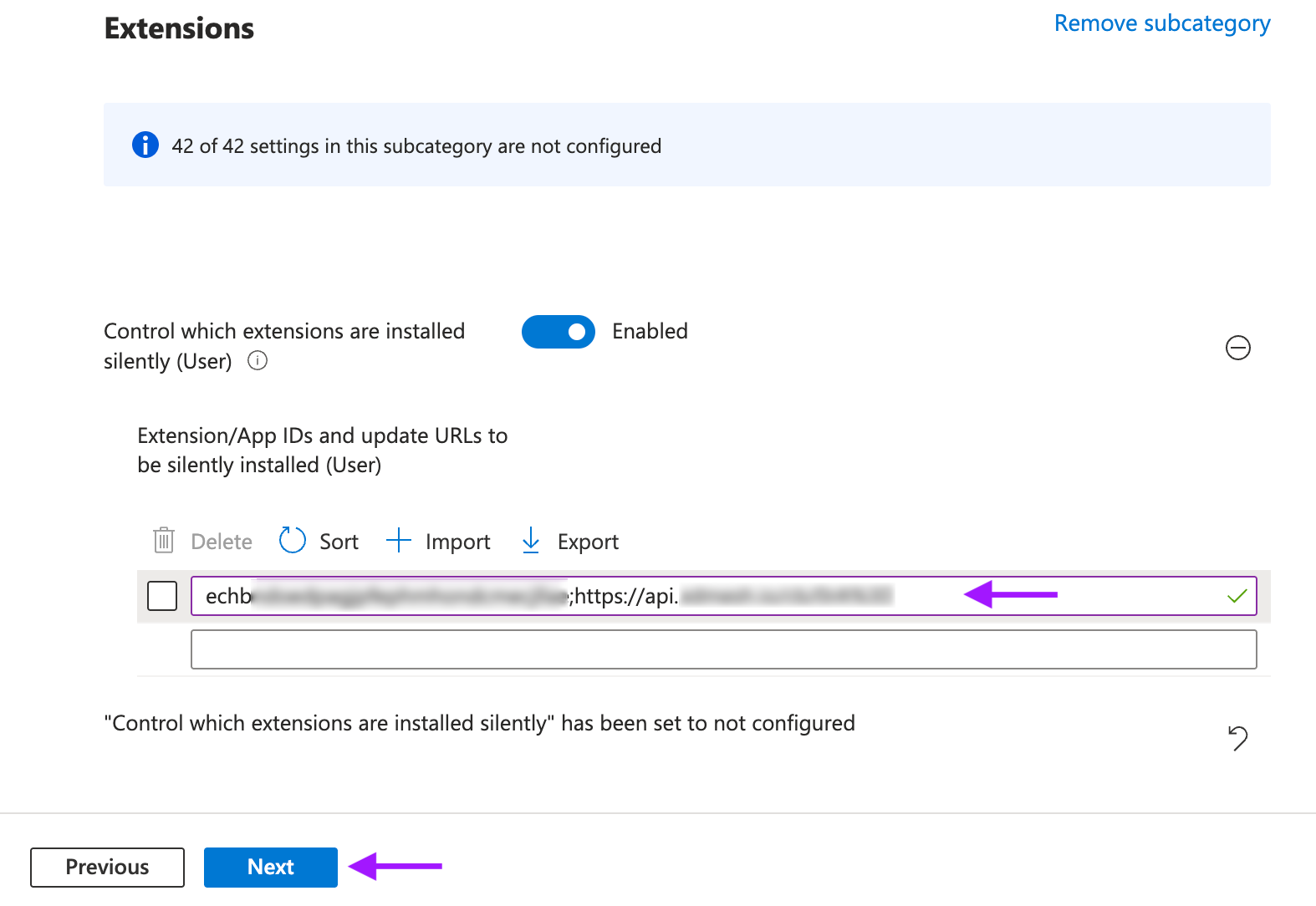

  • In the Extension/App ID field, enter your personalised App ID and URL
    • Ensure they are added and separated by a semicolon.



WP3 img 18.png



Select Next to move to the Scope Tags tab and select Next again, as you will not be required to make any changes.

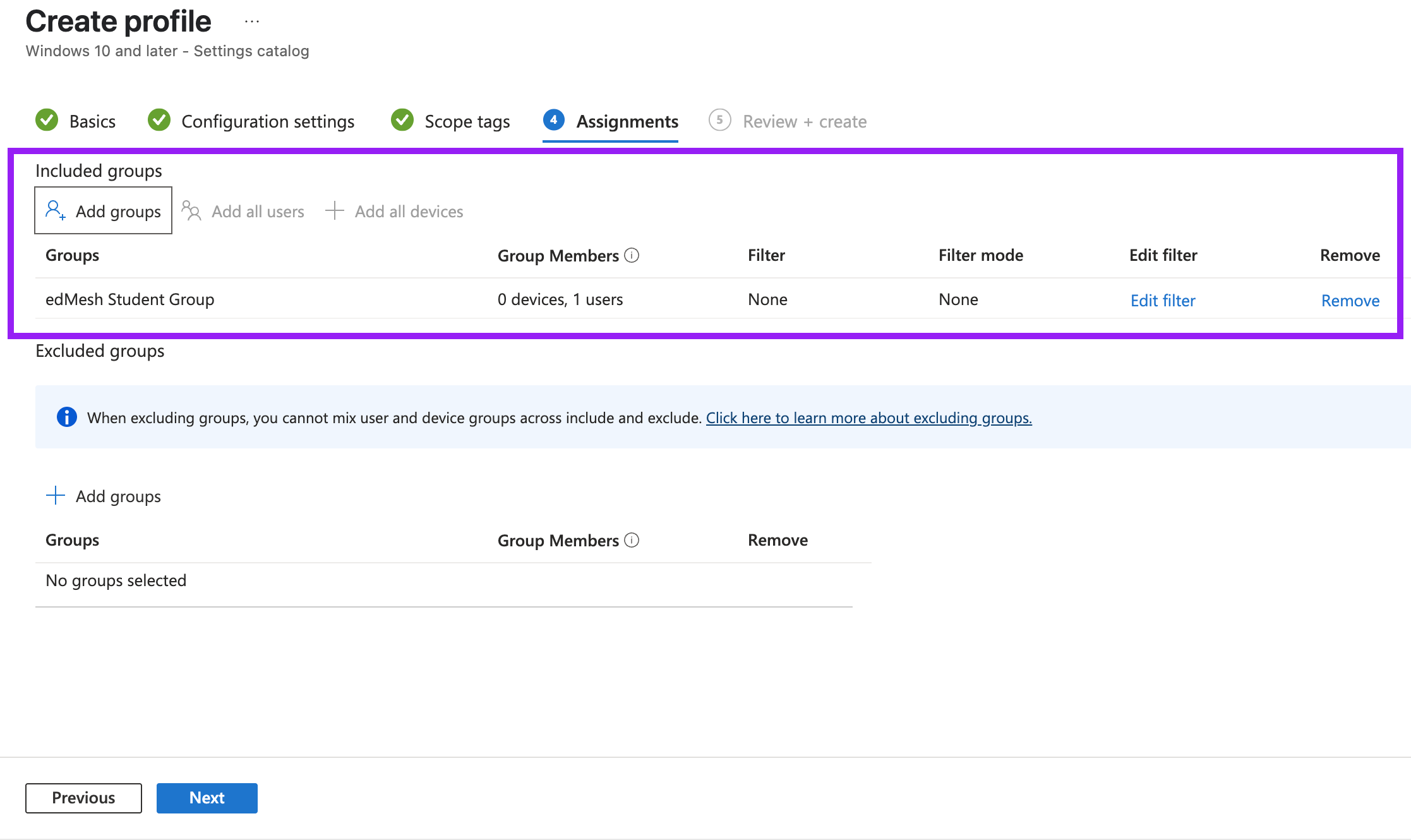

Assignments

Under the Included groups section

  • Select Add groups
  • Select the group you want to apply the settings to (e.g., Students)
  • Select Next

WP3 img 19.png

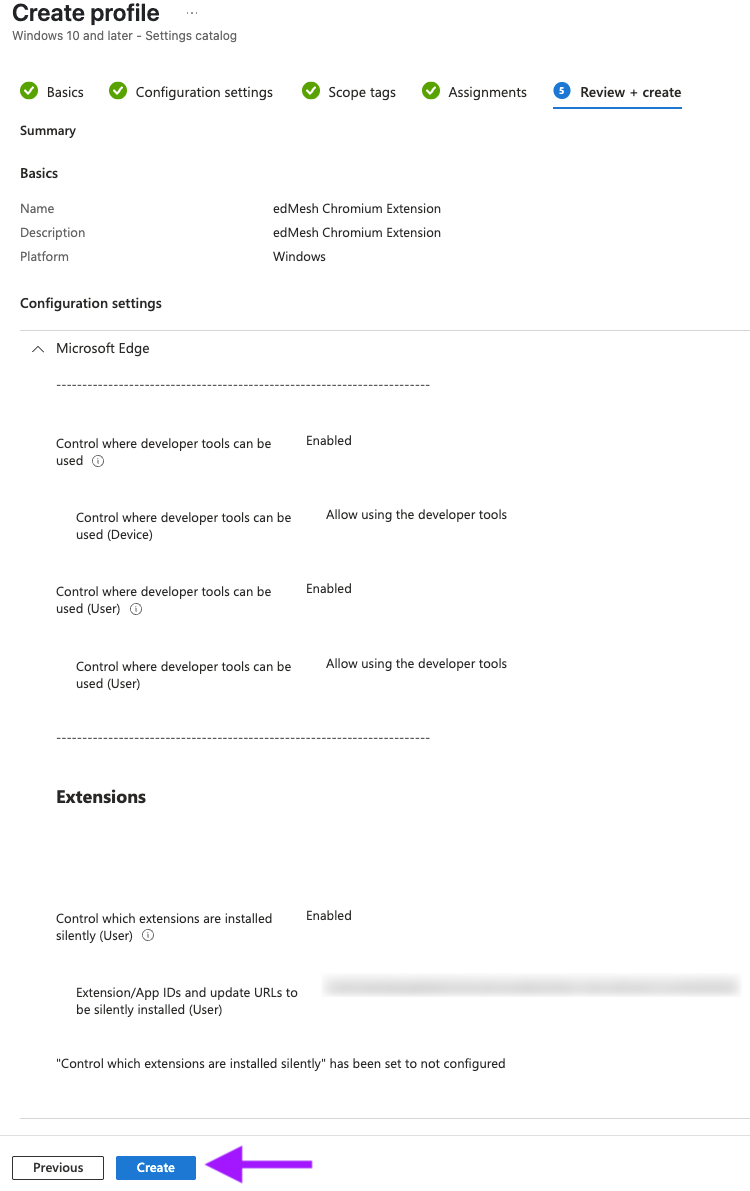

Review and Create:

  • Review your settings and click Create.

WP3 img 20.png

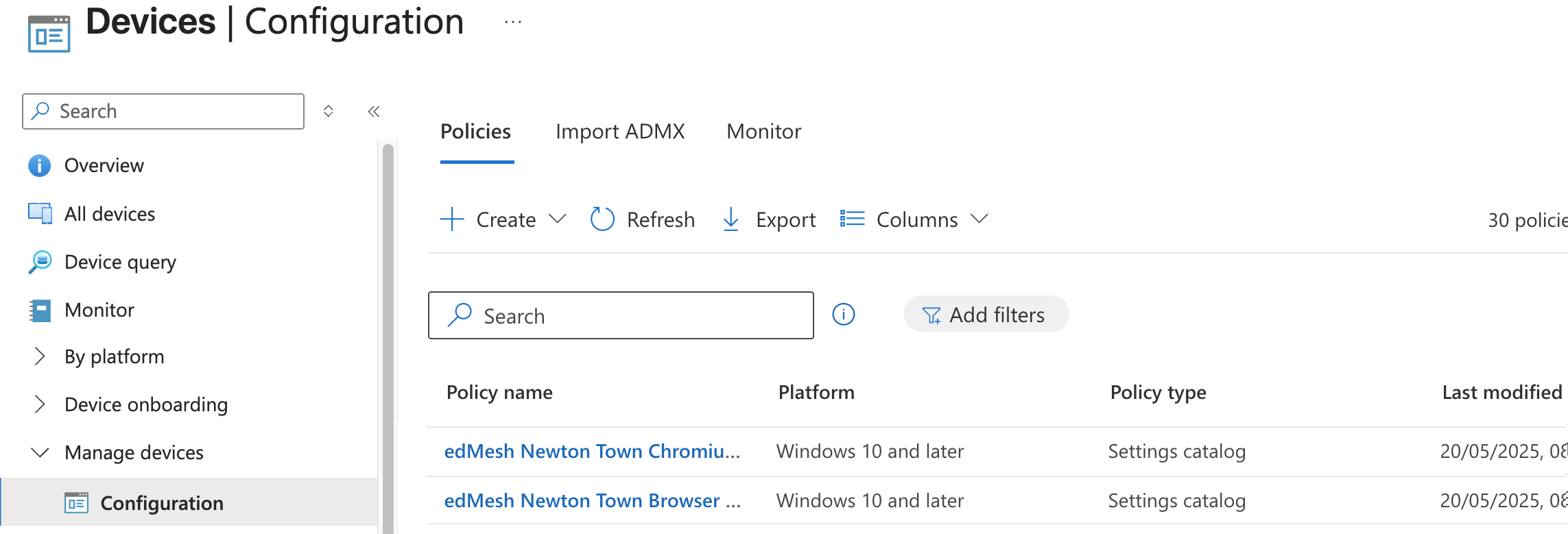

  • Refresh the page to see your newly created configuration profile.

WP3 img 21.png



edMesh Windows Helper Application

#Note on .Net Runtime:

If the device does not already have a .Net runtime installed, you will need to add the Windows Desktop Runtime as a prerequisite. Follow the same steps as described below.

Full Instructions:

Configuring Desktop Runtime

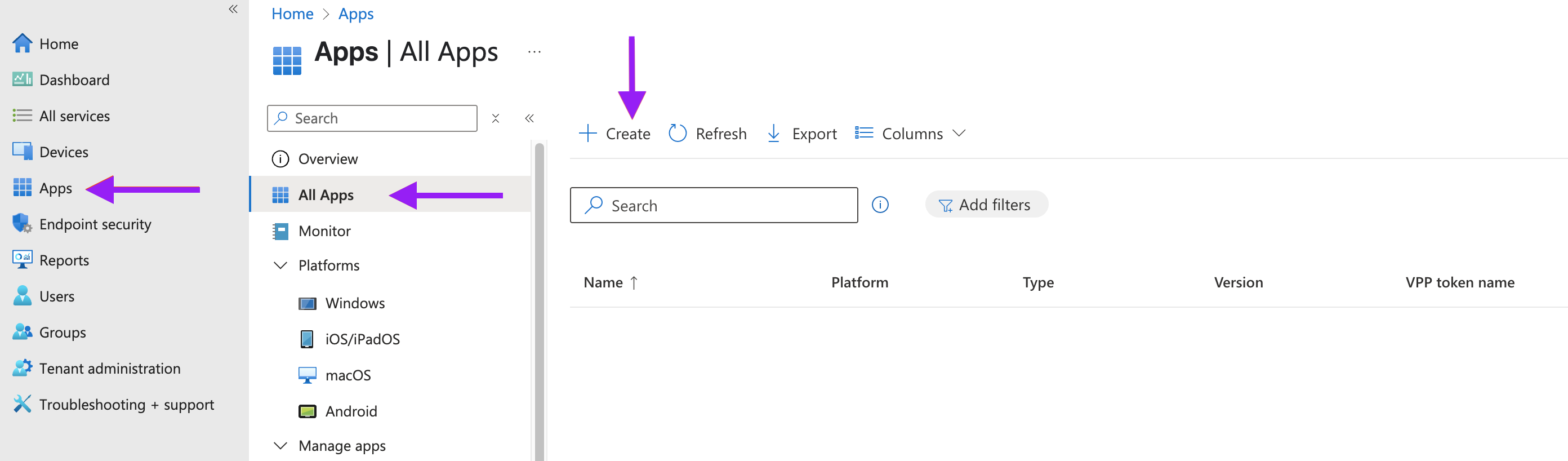

  • Select Apps
  • All apps
  • Create

WP3 img 22.png

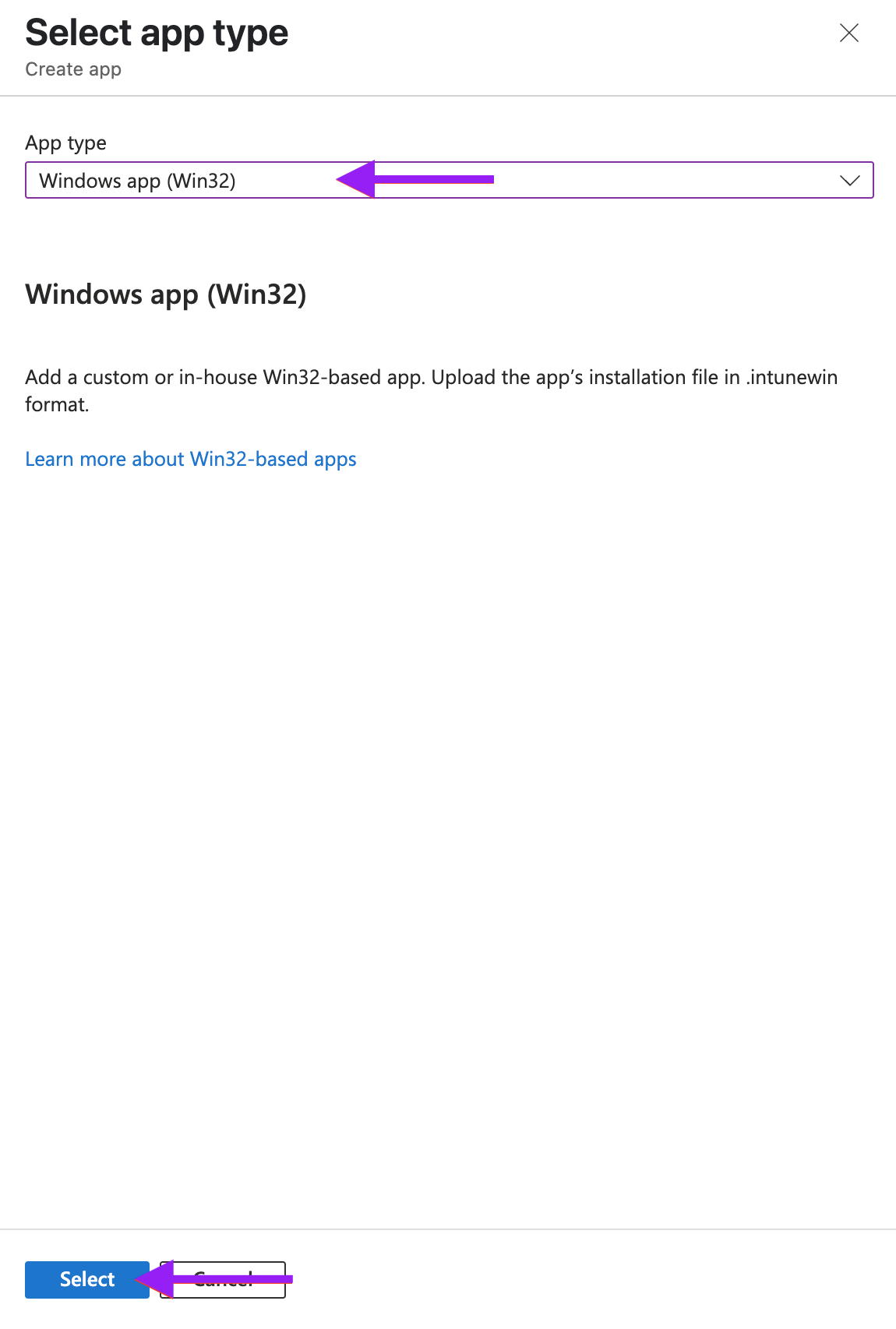

On the Select app type window

  • Under Other app types, select Windows app (Win32)
  • Click Select

WP3 img 23.png

App Information

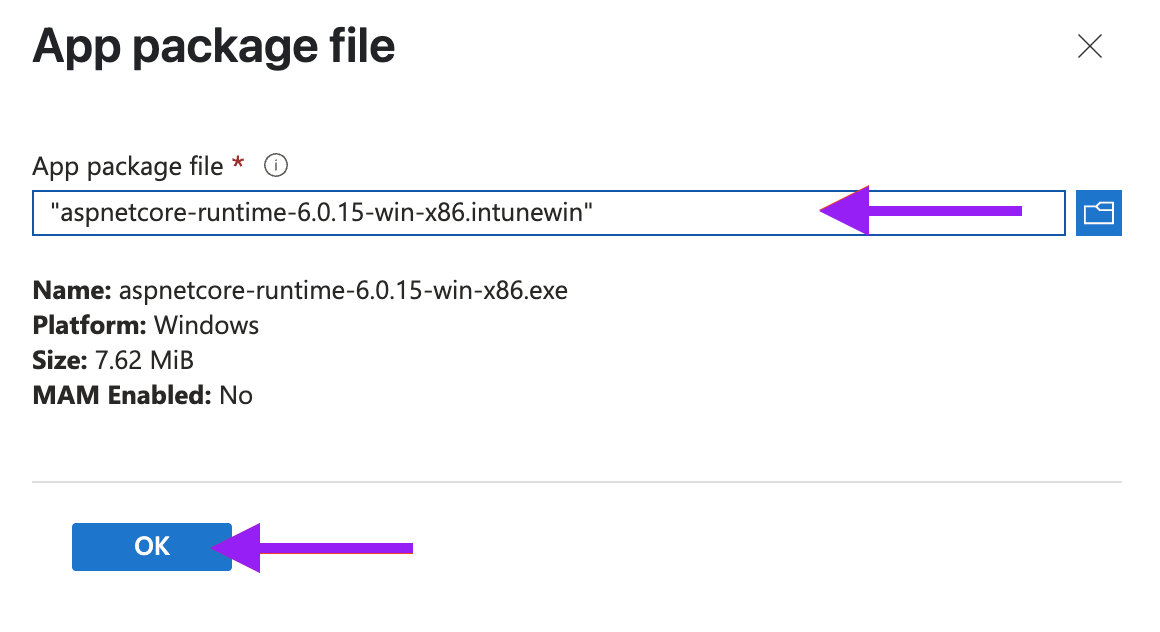

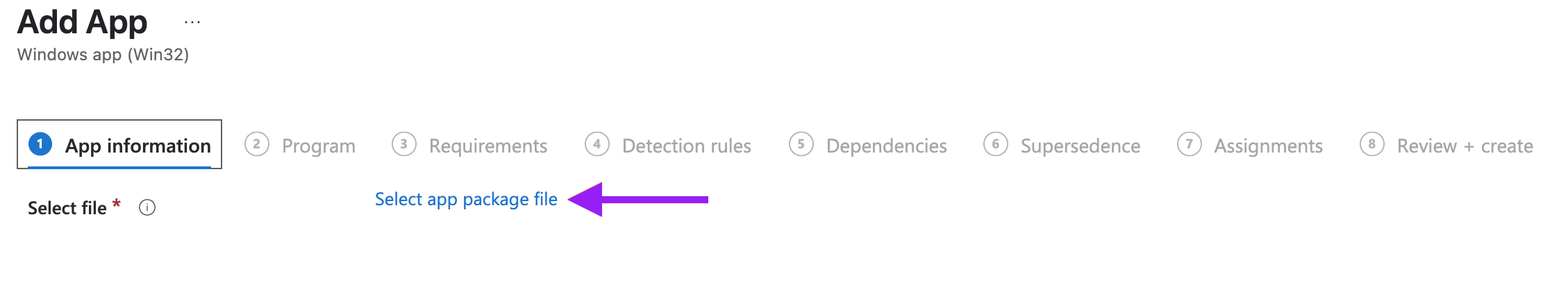

  • Click Select app package file
  • Click OK on the App package file pane.

WP3 img 24.png

WP3 img 25.png

  • Browse and select the Windows desktop runtime file with the extension .intunewin.

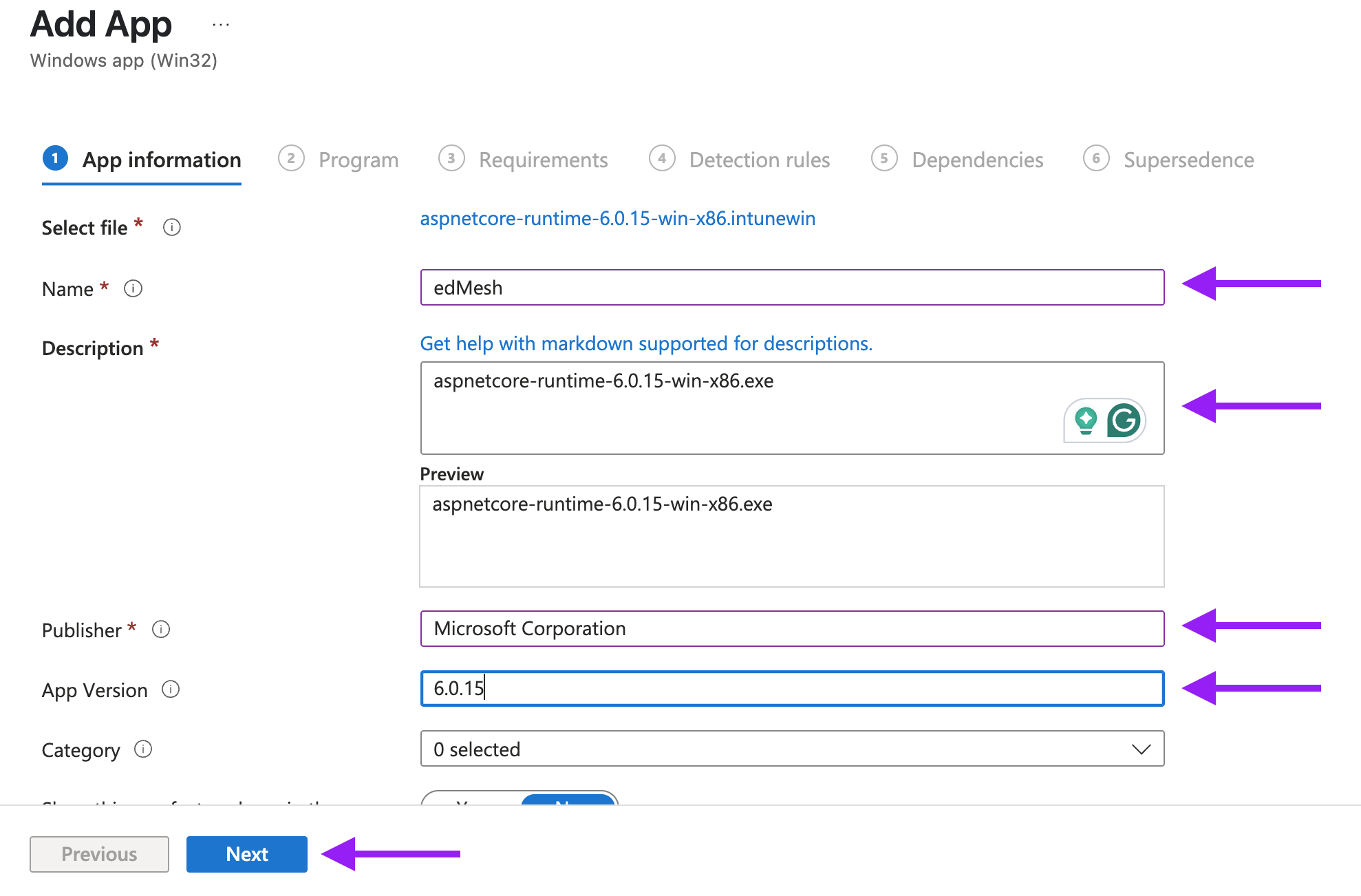

App Information

  • Name and Description: will be automatically populated (You may edit this)
  • Publisher: Microsoft Corporation
  • App Version: Enter the desktop runtime app version you uploaded.
  • Click Next

WP3 img 26.png

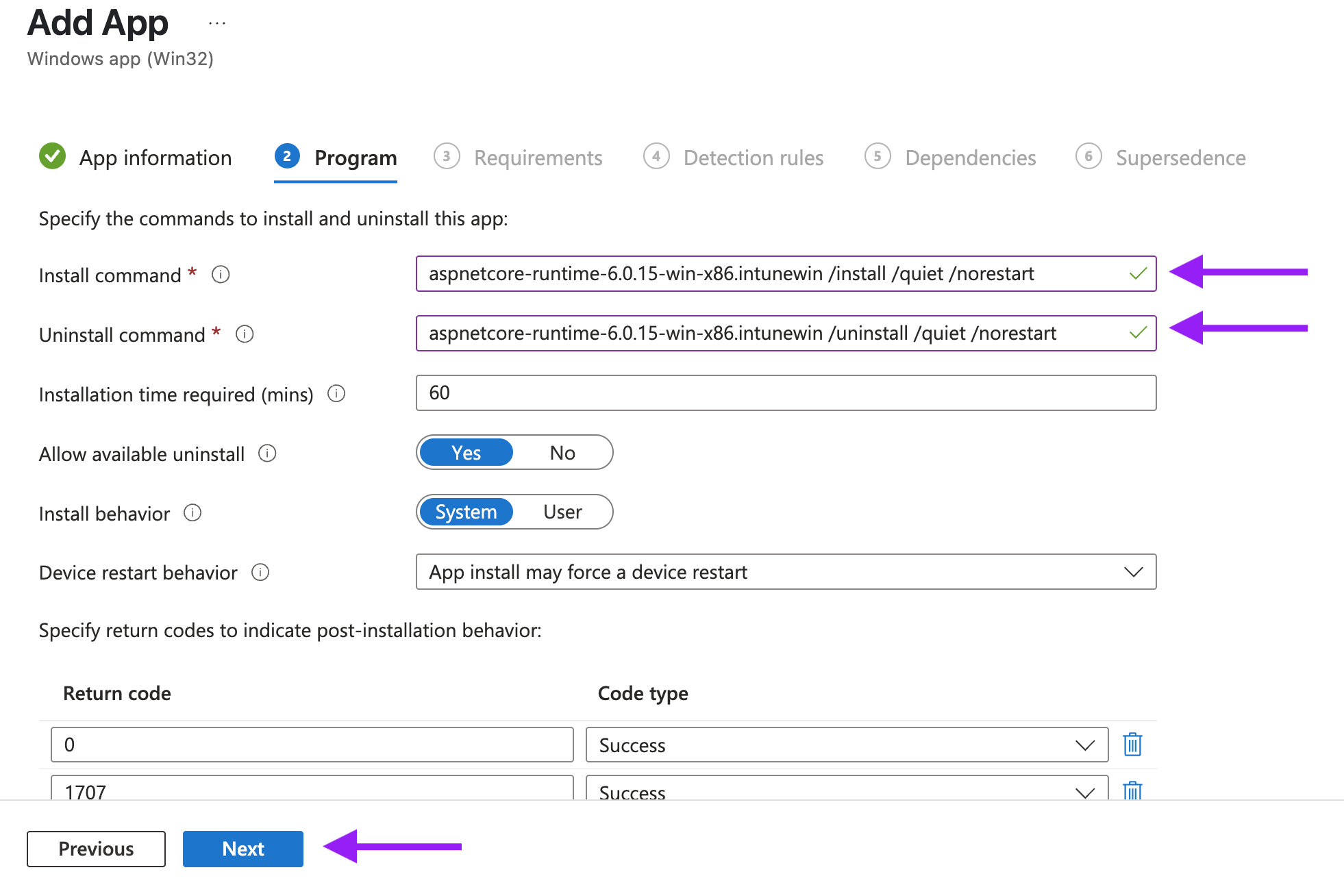

Program

  • Install command: `aspnetcore-runtime-6.0.15-win-x86.intunewin /install /quiet /norestart`
  • Uninstall command: `aspnetcore-runtime-6.0.15-win-x86.intunewin /uninstall /quiet /norestart`
  • Click Next.

#Note: Please note that the highlighted needs to match the version of the Windows desktop runtime you uploaded.



WP3 img 27.png

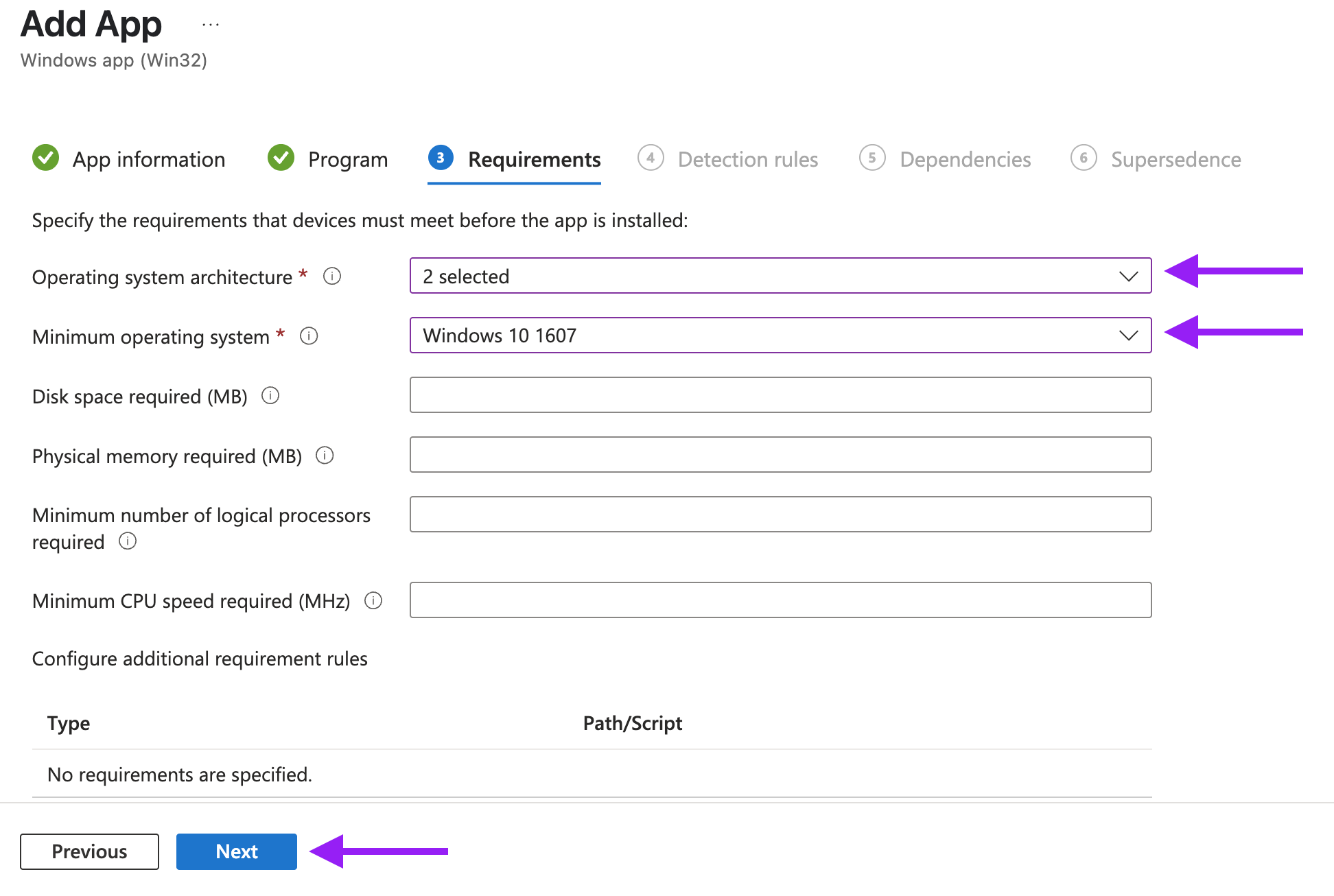

Requirements

  • Operating system architecture: Both 32-bit and 64-bit
  • Minimum operating system: Windows 10 1607
  • Click Next



WP3 img 28.png

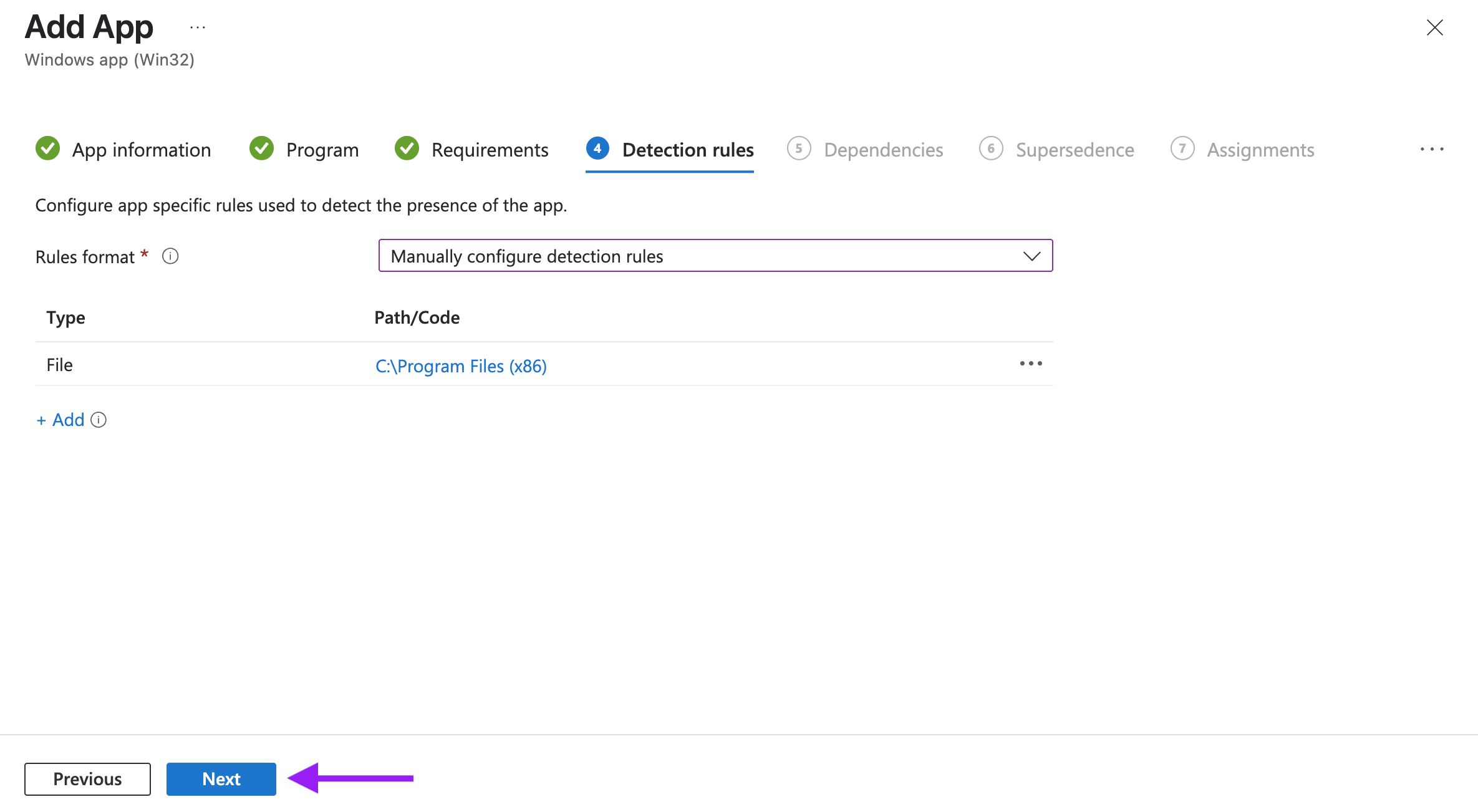

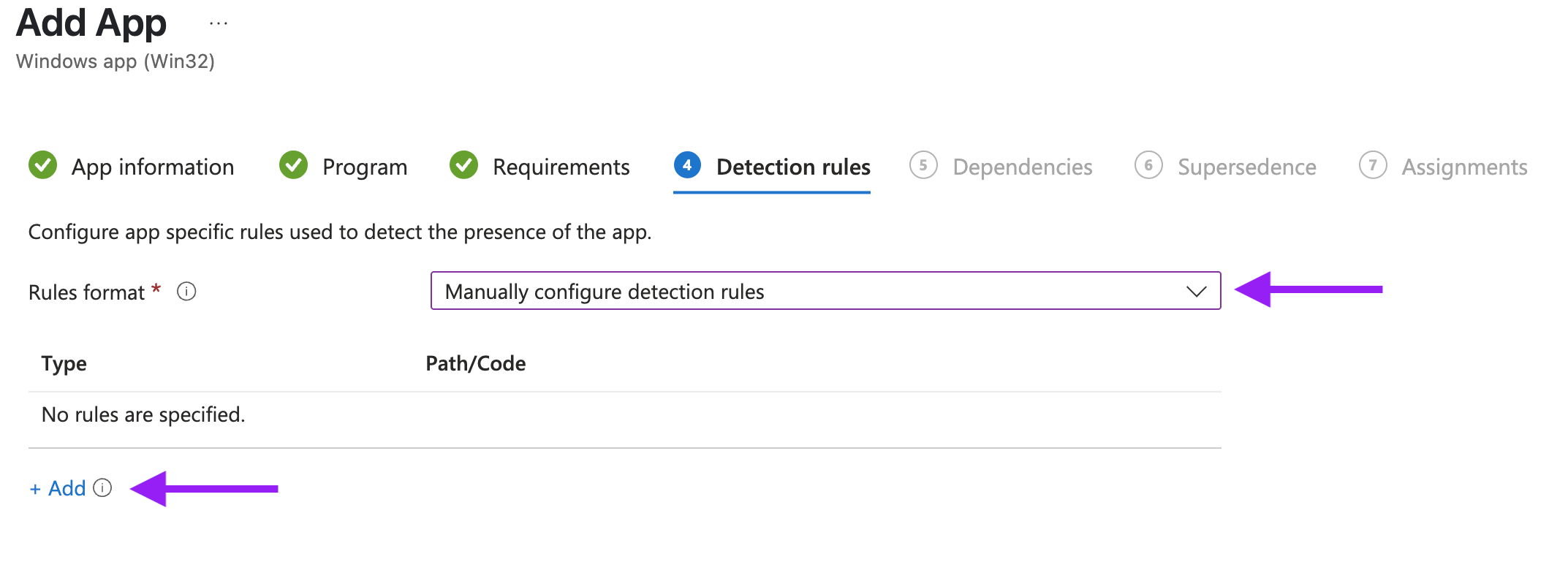

Detection Rules

  • Select Manually configure detection rule.
  • Click Add and configure as follows:

WP3 img 29.png

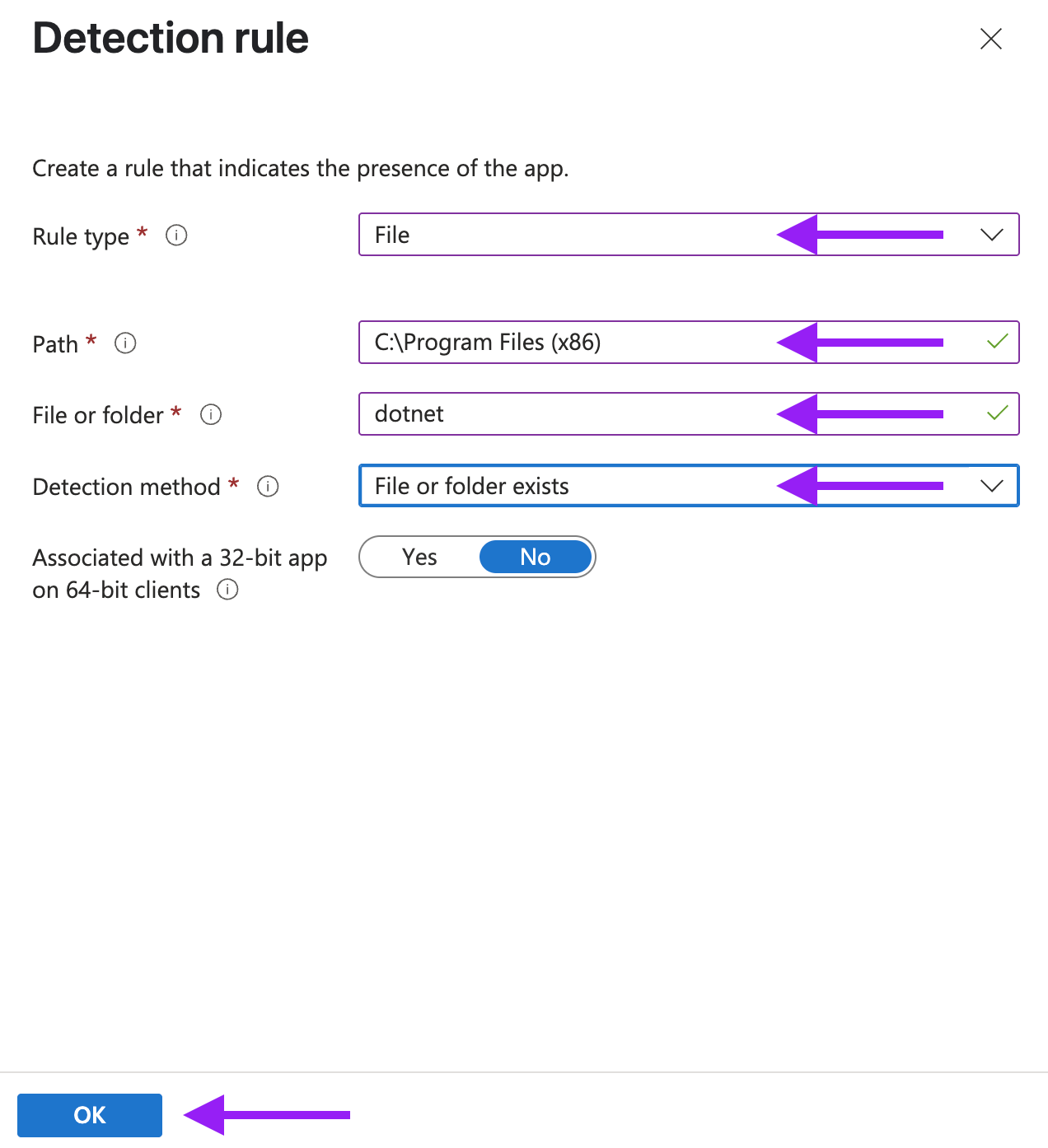

  • Rule Type: File
  • Path: `C:\Program Files (x86)`
  • File or Folder: `dotnet`
  • Detection method: File or folder exists
  • Click OK

WP3 img 30.png

WP3 img 31.png



#Note: There are no Dependencies or Supersedence settings required. Continue clicking the Next button until you reach the Assignments tab.

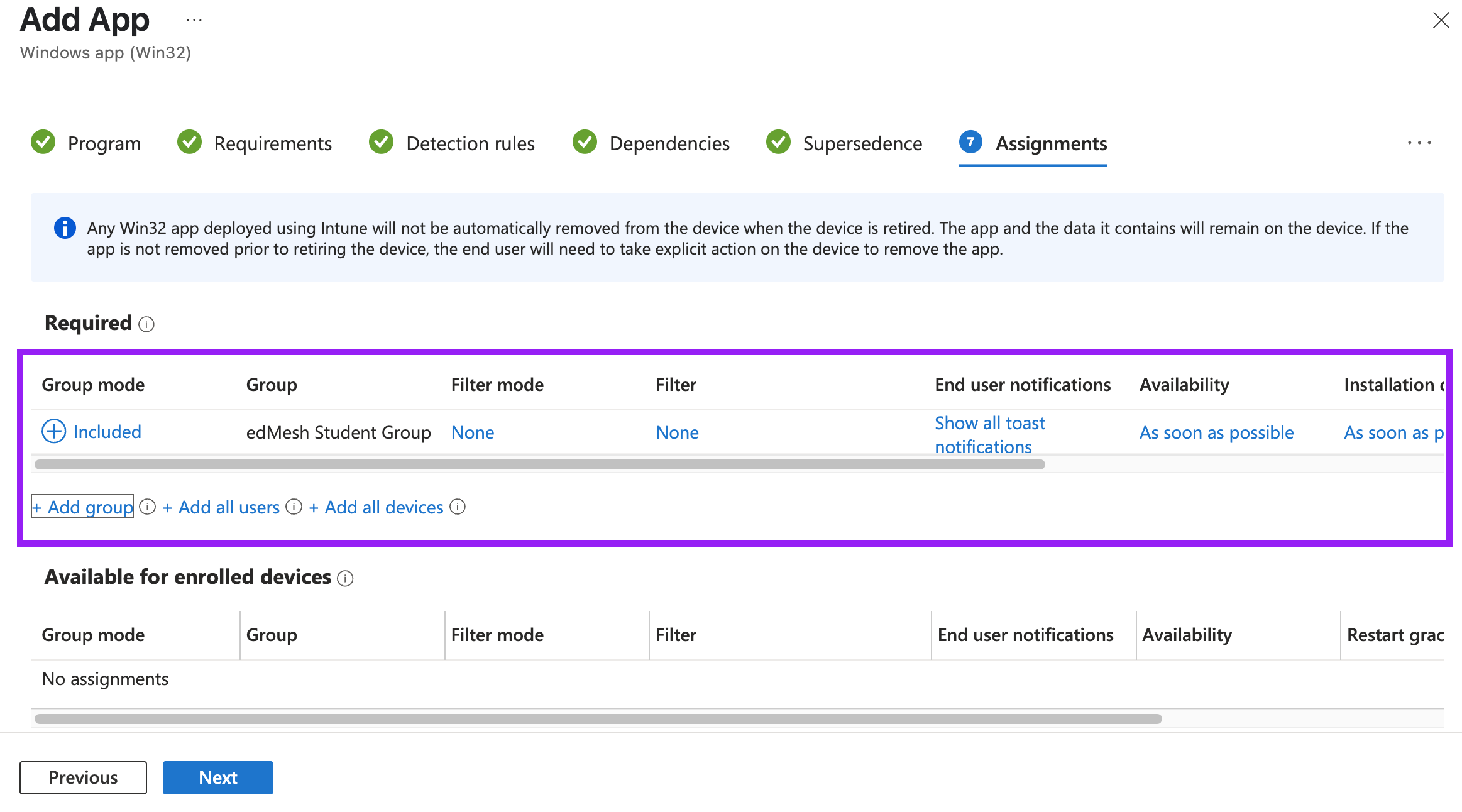

Assignments

  • Required: Click Add group (assign the application to the same groups as used for the configuration profiles)
  • Select Next

WP3 img 32.png

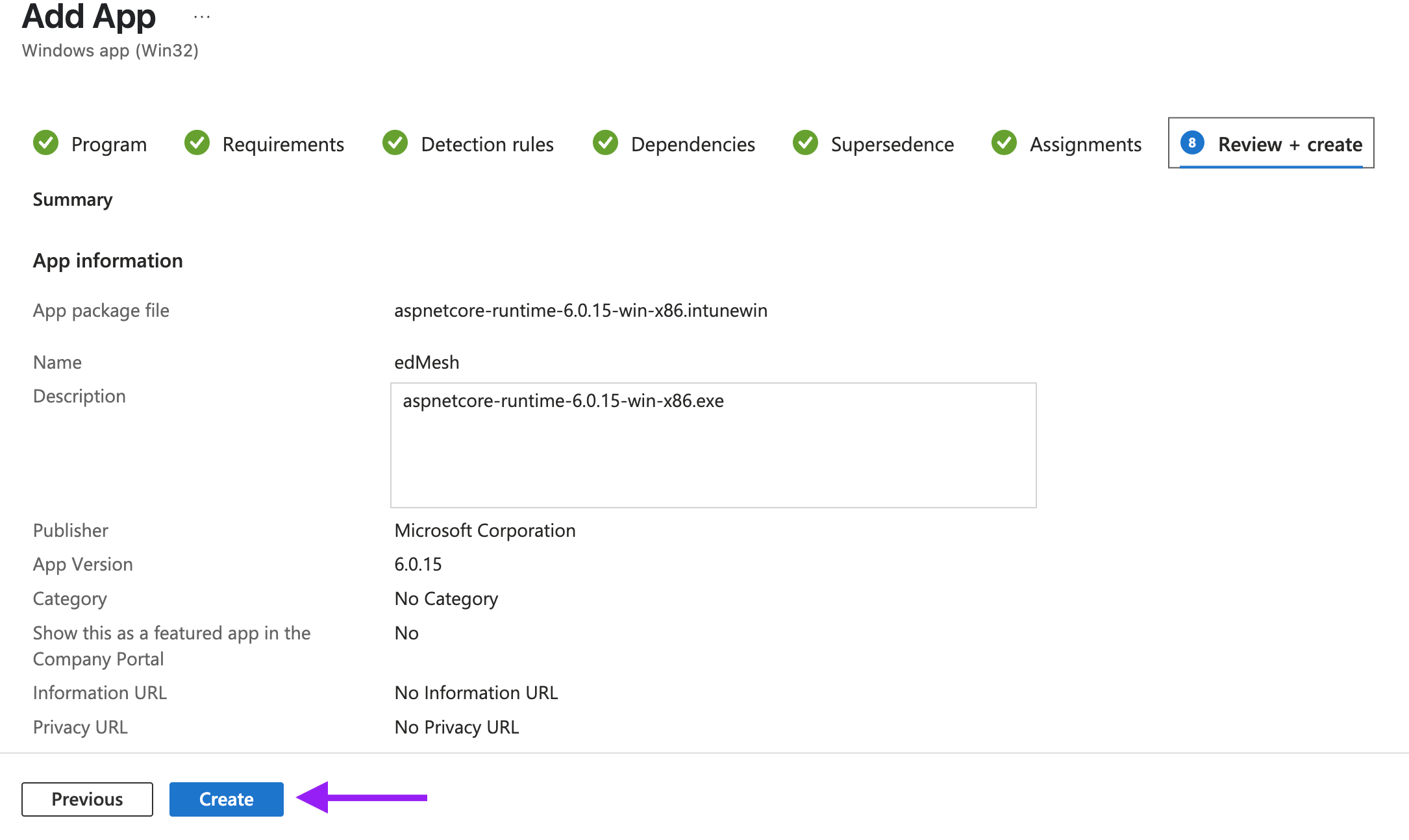

Review and Create

  • Review your settings and click Create.

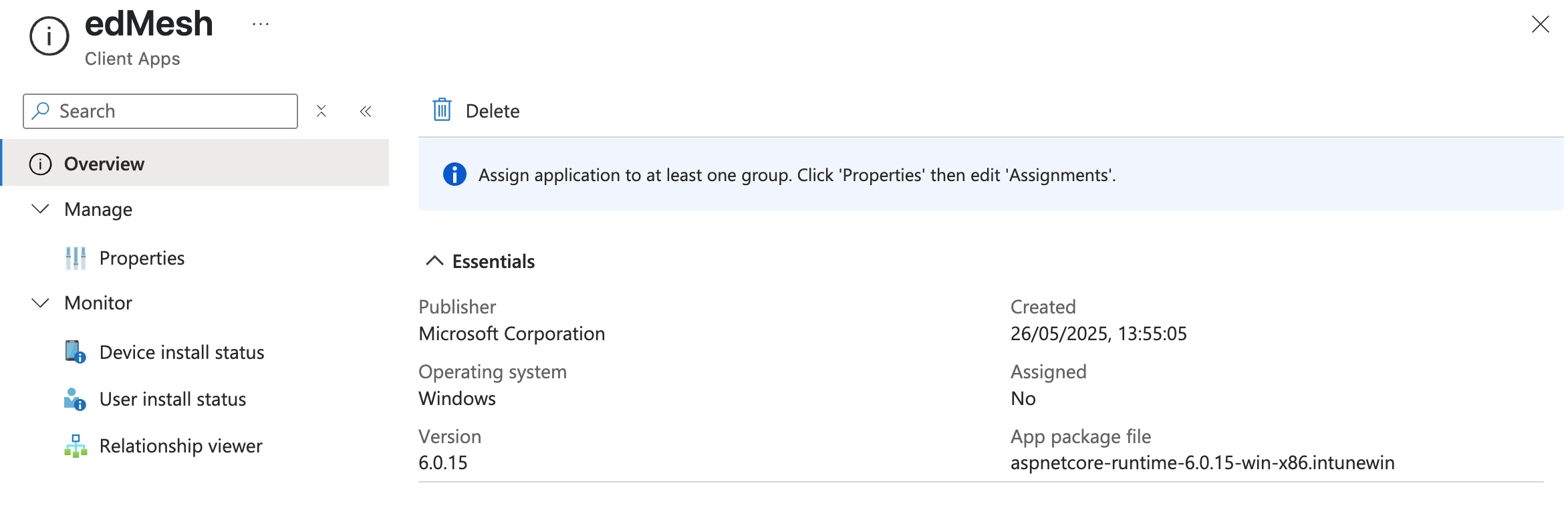

  • You will see a notification that your application has been created.

WP3 img 33.png



WP3 img 34.png



Device Setup

When signing onto the device with a student account. The configuration profile installs the edMesh extension on the Edge Browser. The extension calls the API to fetch updated or new details from Intune.

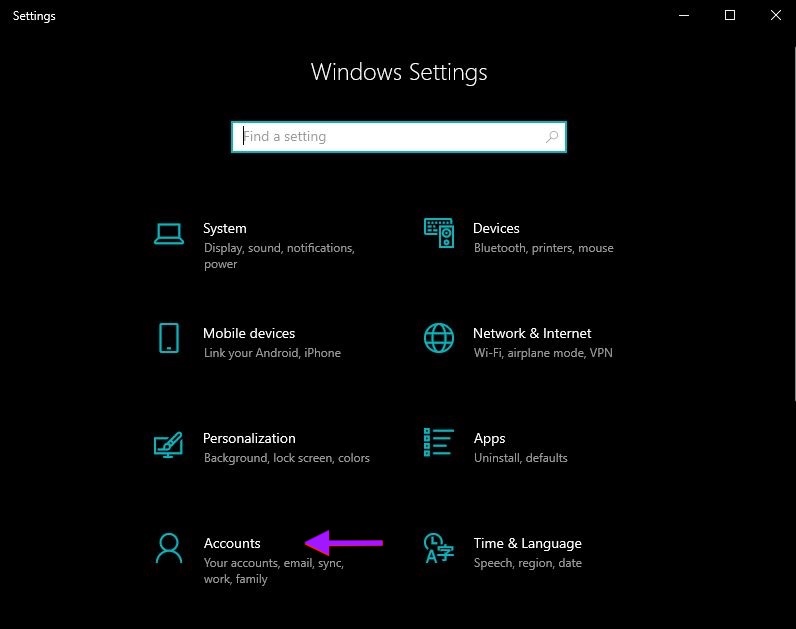

To add the user to the device, you or the user would need to add the account by navigating to:

  • Settings
  • Accounts

WP3 img 35.JPG

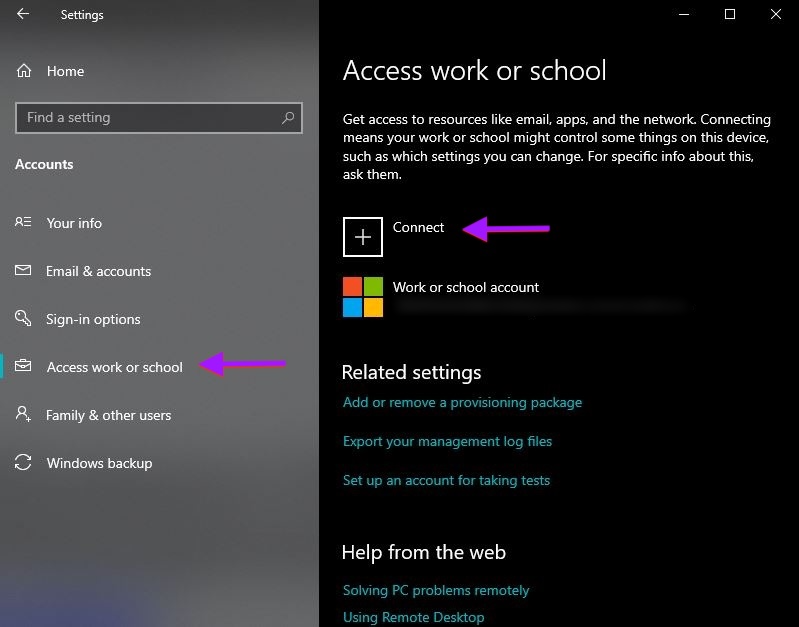

  • Access Work or School
  • Connect

WP3 img 36.png

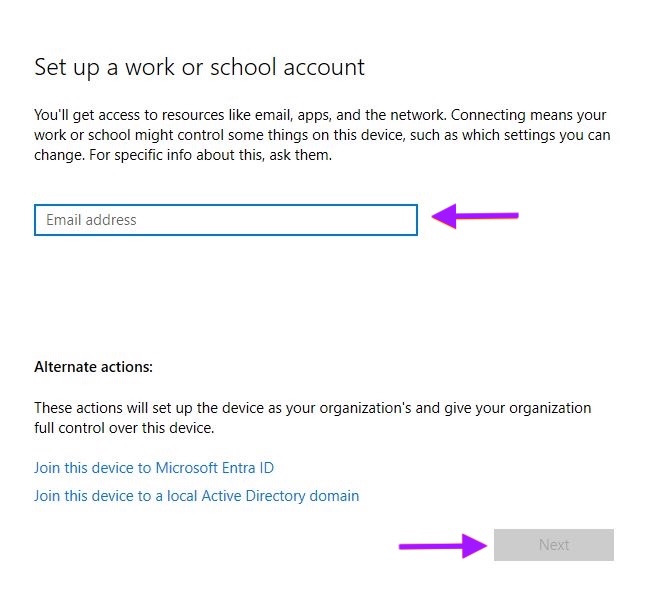

  • Add the student's email and follow the prompts

WP3 img 37.JPG

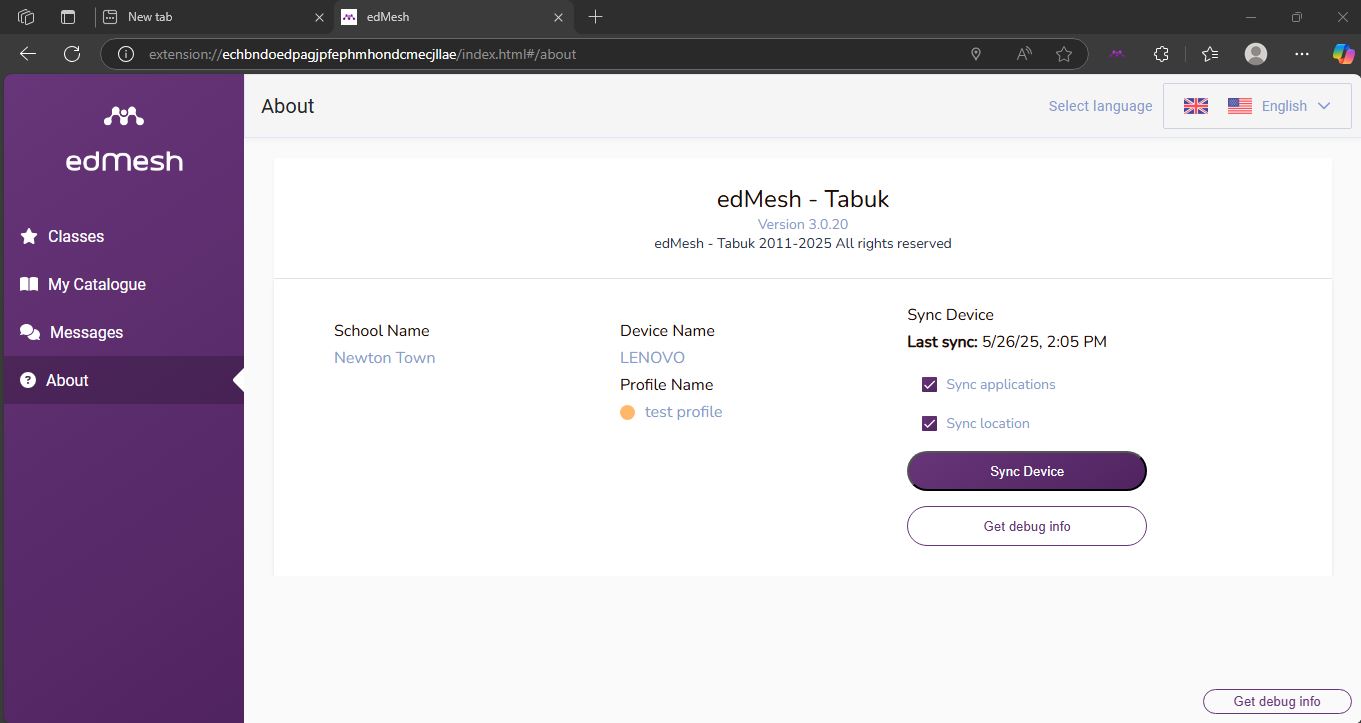

#Note: Once the process is completed, the extension will install. The device may require you to sign out and back in with an Azure student account or restart the device.



WP3 img 38.JPG

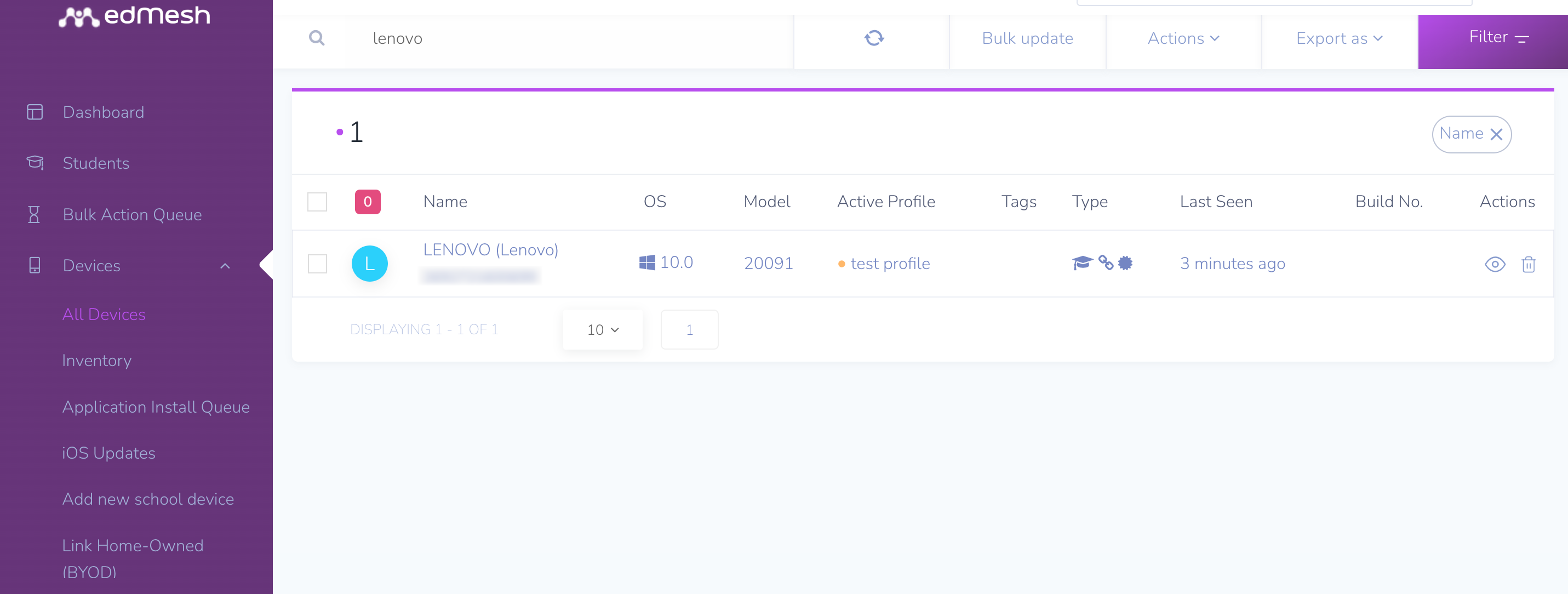

Once installed, the device will be added to your edMesh Dashboard.



WP3 img 39.png



#Note: The process is the same as for a new device.

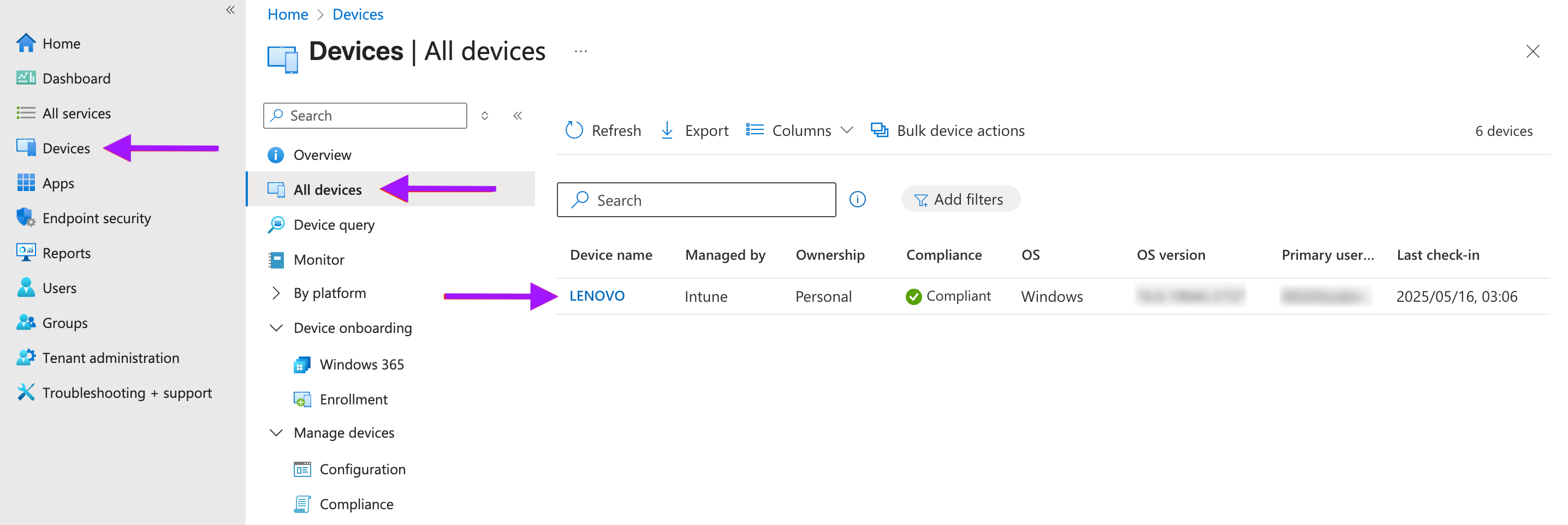

The device information will be added to your Microsoft Intune admin center as well.

Navigate to:

  • Devices
  • All devices

WP3 img 40.png

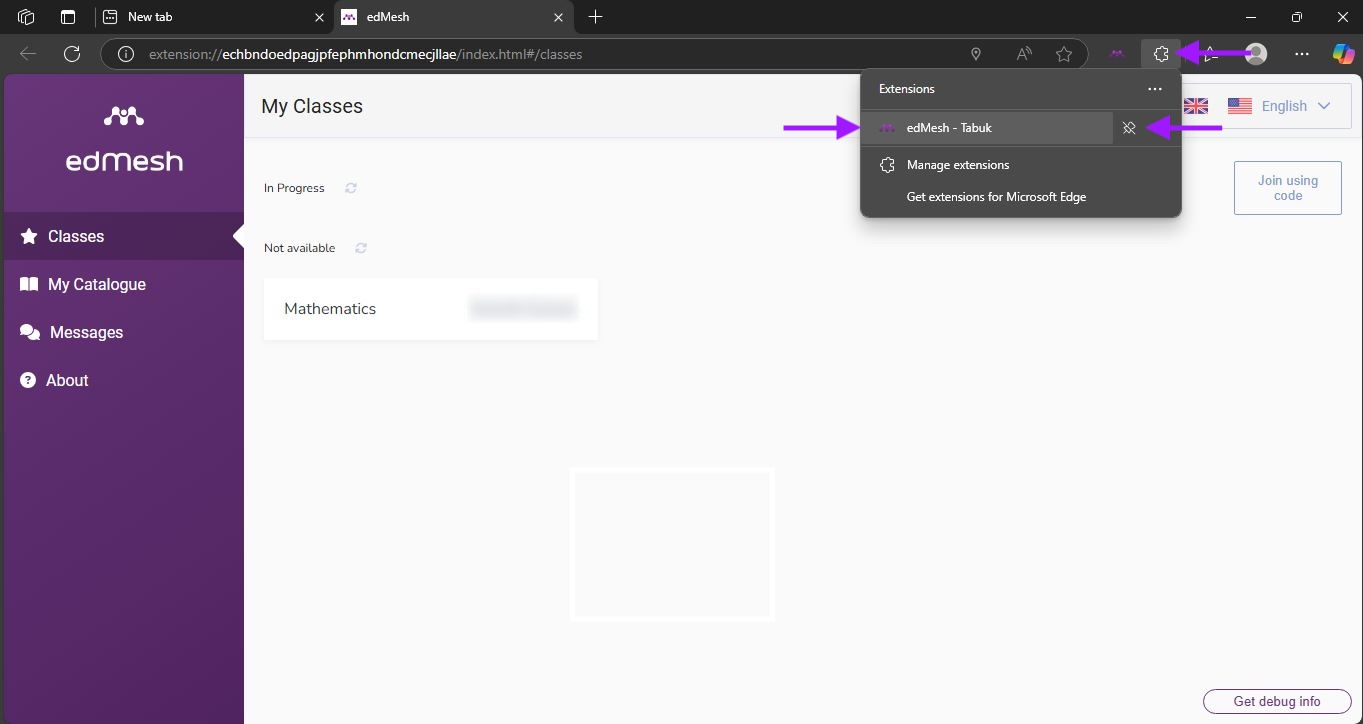

To ensure the profile has been added to the Edge Browser and is in use. Your Edge Browser icon will display a briefcase on the icon

You may view the extension on the Extensions tab and will be able to pin the extension to the Edge Browser.



WP3 img 42.png
